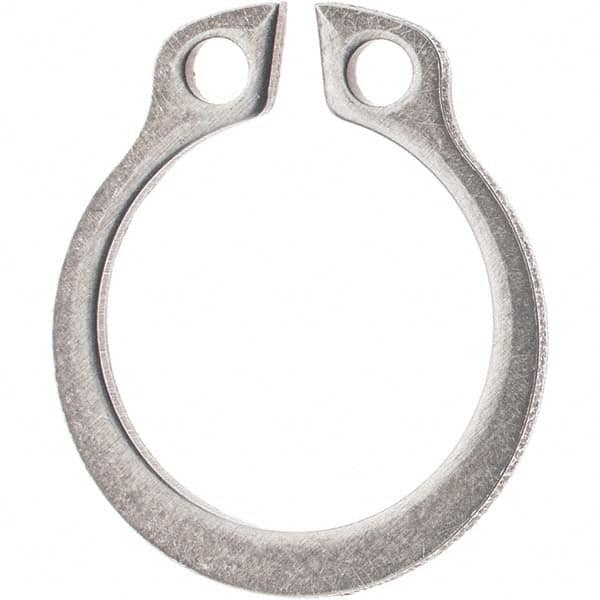

Rotor Clip - 9mm Shaft Diam, 8.6mm Groove Diam, Stainless Steel Metric External SH Style Retaining Ring
Item #: 99622201
Brand: Rotor Clip
Model #: DSH-9SG
Features and Benefits
SH style external retaining rings refer to shaft style and is applied externally onto the shaft of a workpiece. The SH ring is installed by separating the lugs, then being released into a groove.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | SH Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 9.00 |
| Groove Diameter (mm) | 8.60 |
| Free Diameter (mm) | 8.40 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | DIN 1.4122 |
| Groove Width (mm) | 1.10 |
| Groove Depth (mm) | 0.20 |
| Ring Thickness (mm) | 1.00 |
| Free Diameter Tolerance (mm) | -0.180 to 0.060 |
