Ultra Quick Change Vice Jaws & Mounting Screws

ULTRA QUICK CHANGE MACHINABLE VISE JAWS
FEATURES:
  • Available in Steel or Aluminum
  • Customize jaws for your desired job specifications
  • Quick change style master jaws are compatible with industry standard vise jaws
  • Can be heat treated
  • Aluminum Jaws are ideal for delicate work
  • QUANTITY DISCOUNTS! Buy 10 or more sets (mix & match) and receive and additional 10% discount
Prices are pulled from our database in real time. Press Add button to see product price.

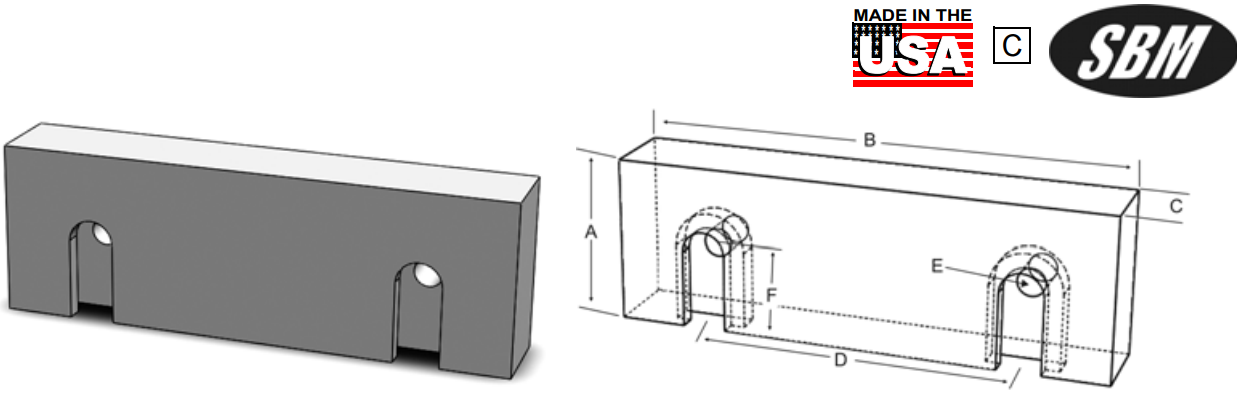

A B D E F C STEEL ALUMINUM
Vise Size Height Inch Length Inch Hole Space Screw Size Hole Dist. Width Inch Part Number Part Number
4” 1-3/4 4 2-1/2 3/8 .687 3/4 VJ-4QM41707S-U
VJ-4QM41707A-U
2 4 2-1/2 3/8 .687 1 VJ-4QM42010S-U
VJ-4QM42010A-U
6” 2 6 3-7/8 1/2 .937 3/4 VJ-6QM62007S-U
VJ-6QM62007A-U
1 VJ-6QM62010S-U
VJ-6QM62010A-U
1-1/4 VJ-6QM62012S-U
VJ-6QM62012A-U
1-1/2 VJ-6QM62015S-U
VJ-6QM62015A-U
2 VJ-6QM62020S-U
VJ-6QM62020A-U
12 3-7/8 1/2 .937 1 VJ-6QM22010S-U
VJ-6QM22010A-U
1-1/4 VJ-6QM22012S-U
VJ-6QM22012A-U
3 6 3-7/8 1/2 .937 1 VJ-6QM63010S-U
VJ-6QM63010A-U
2 VJ-6QM63020S-U
VJ-6QM63020A-U
4 6 3-7/8 1/2 .937 1 VJ-6QM64010S-U
VJ-6QM64010A-U
1-1/2 VJ-6QM64015S-U
VJ-6QM64015A-U
2 VJ-6QM64020S-U
VJ-6QM64020A-U
STEEL Vise Jaws are made from C1018 Cold Roll Steel and can be hardened. ALUMINUM Vise Jaws are made from 6061-T6 Bar Stock.

Mounting Screws

MOUNTING SCREWS
For Quick Change Vise Jaws
  • High quality screws are black oxided for durability and long life
  • Low head screws for use on all “quick change” vise jaws
  • 4 screws per package
Prices are pulled from our database in real time. Press Add button to see product price.
Vise Size Part Number
4” SN-4LHS-16
6” SN-6LHS-13
8” SN-8LHS-11
