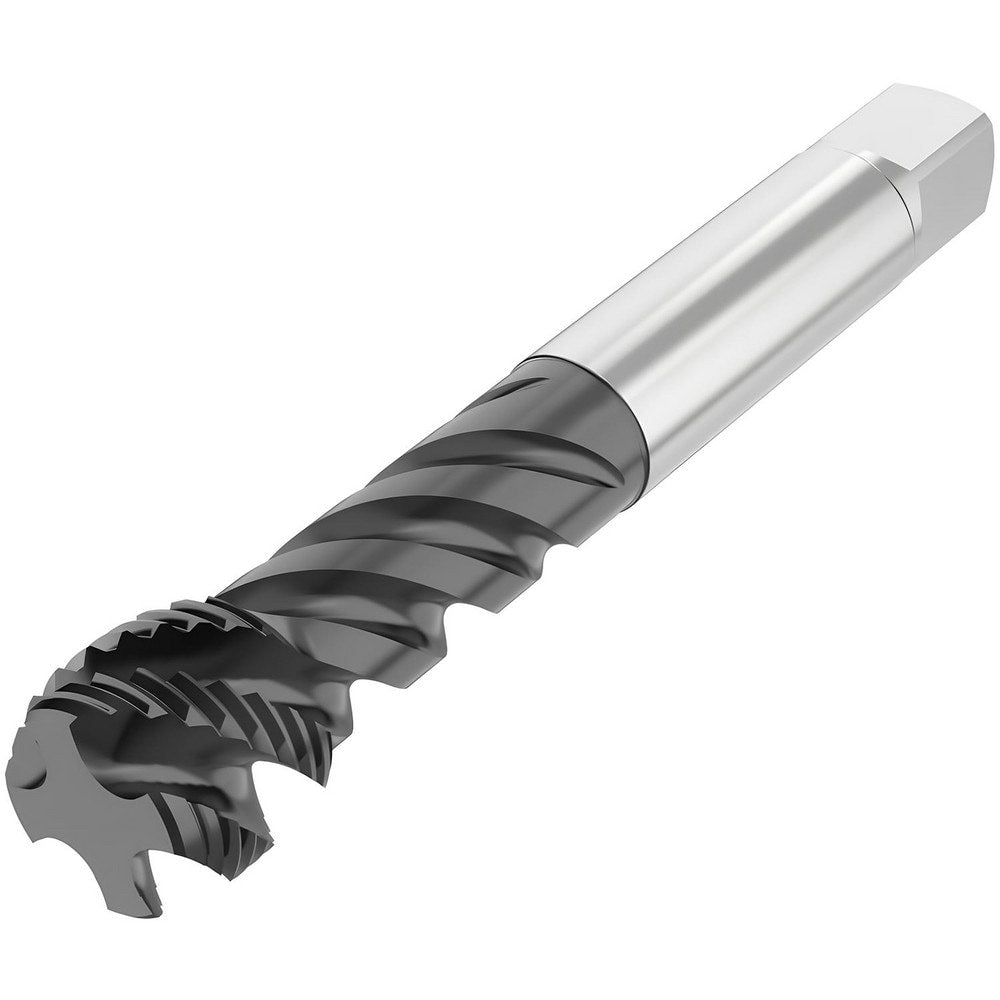

Brand: Seco / Part #: 10139091
Item #: 98790272
Brand: Seco
Model #: 10139091
Product Specifications
| Thread Size (Inch) | G 1-11 |
| Chamfer | Modified Bottoming |
| Class Of Fit | NORMAL-X |
| Number Of Flutes | 4 |
| Material | HSS-E-PM |
| Threads per Inch | 11 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | HL |
| Thread Depth (mm) | 24.00 |
| Coolant Through | No |
| Thread Length (mm) | 24.00 |
| Overall Length (mm) | 160.0000 |
| Thread Pitch (Decimal Inch) | 0.0909 |
| Thread Pitch (mm) | 2.31 |
| Thread Standard | G |
| Helix Angle | 45.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 25.0000 |
| Neck Length (mm) | 69.00 |
| Tapping Depth (mm) | 93.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Shank Length (mm) | 67.000 |
