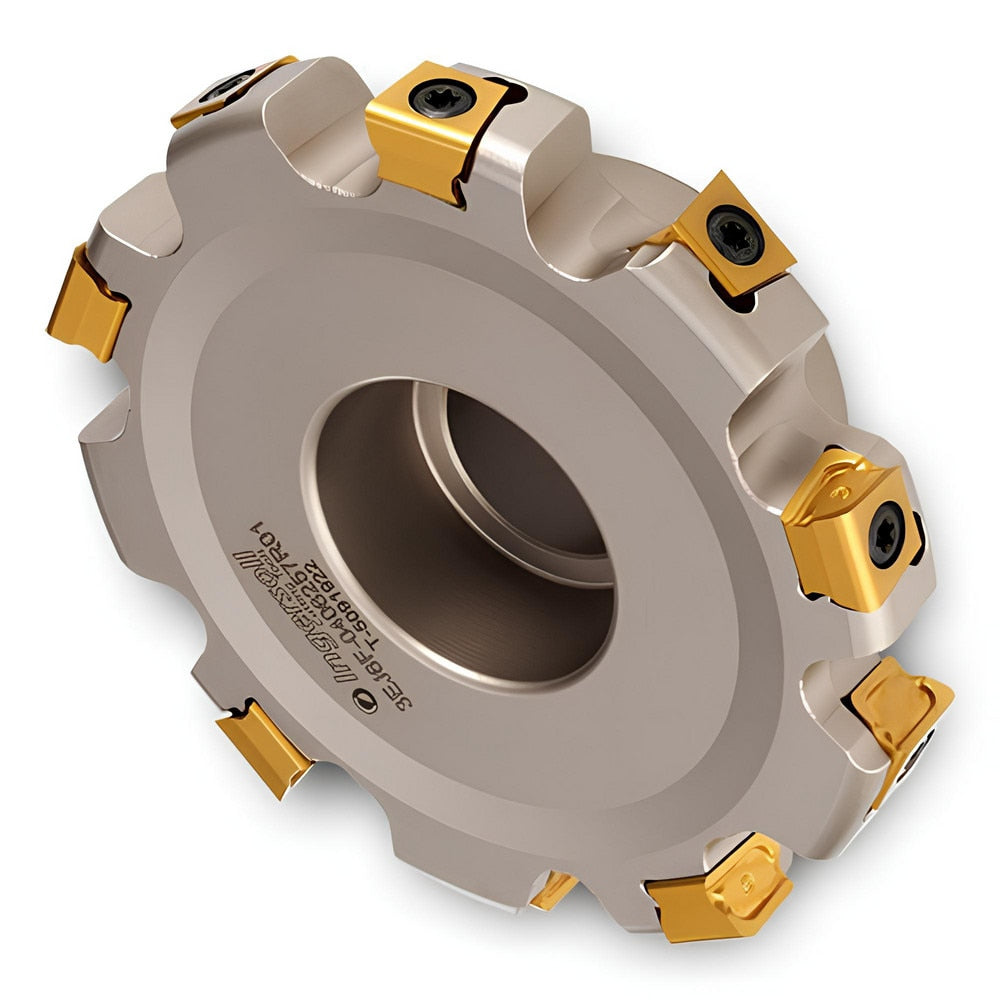

Brand: Ingersoll Cutting Tools / Part #: 3030872
Item #: 42190660
Brand: Ingersoll Cutting Tools
Model #: 3030872
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (Inch) | 5/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.9700 |
| Hole Diameter (Inch) | 1 |
| Cutter Diameter (Inch) | 4 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Length (Decimal Inch) | 0.8750 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | DGM |
| Compatible Insert Size Code | 315 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3EJ6F |
| Toolholder Style | 3EJ6F |
| Hub Diameter (Inch) | 2 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Cutter Body Width (Decimal Inch) | 0.6250 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3EJ6F-0406257R01 |
| Overall Length (Inch) | 1-1/2 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | DGM315.. |
| Coating/Finish | Coated |
