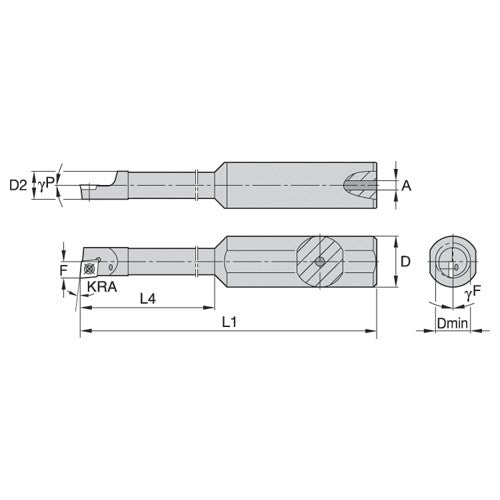

CCBI2505001255R WG CARBIDE BORING BAR STEPPED
Item #: WK212832006
Brand: Widia
Model #: 2832006
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2-3/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2-3/4″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Reduced Body Diameter Length (LDRED) | 1-1/4″ |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 0.484″ |
| Series/List # | CCBI |
| Shank Length (LS) | 1-1/2″ |
| Body Material | Carbide |
| Master Insert Identification (MIID) | CD..120605 |
| Height | 0.01″ |
| Minimum Bore Diameter (DMIN) | 0.285″ |
| Measurement Type | Inch |
