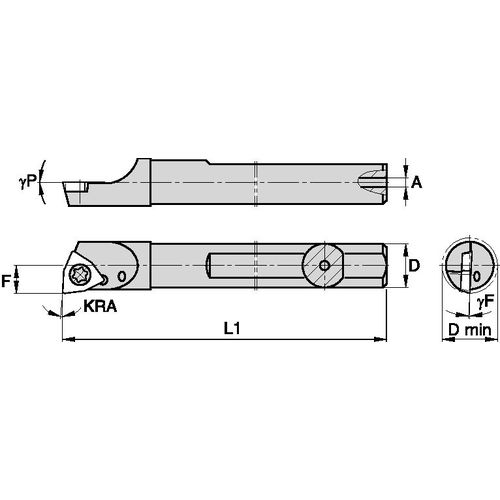

SCBIW625103R CARABIDE SHANK TRIGON
Item #: WK212822603
Brand: Widia
Model #: 2822603
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 10″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Overall Length (OAL) | 10″ |
| Rake Angle Radial (GAMF) | -3 Degrees |
| Head Length (LH) | 1.182″ |
| Series/List # | SCBIW |
| Shank Length (LS) | 8.818″ |
| Body Material | Carbide |
| Master Insert Identification (MIID) | WP..3251 |
| Height | 0.008″ |
| Minimum Bore Diameter (DMIN) | 0.673″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
