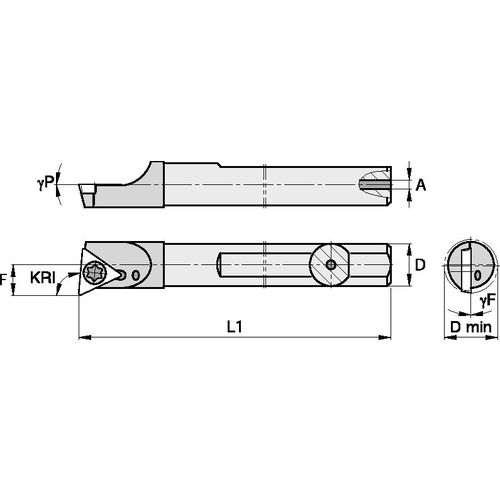

SDBM162545R CARBIDE SHANK BORING
Item #: WK212822085
Brand: Widia
Model #: 2822085
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 17.25 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Length (LF) | 254 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Coolant Supply Property (CSP) | Coolant Thru |
