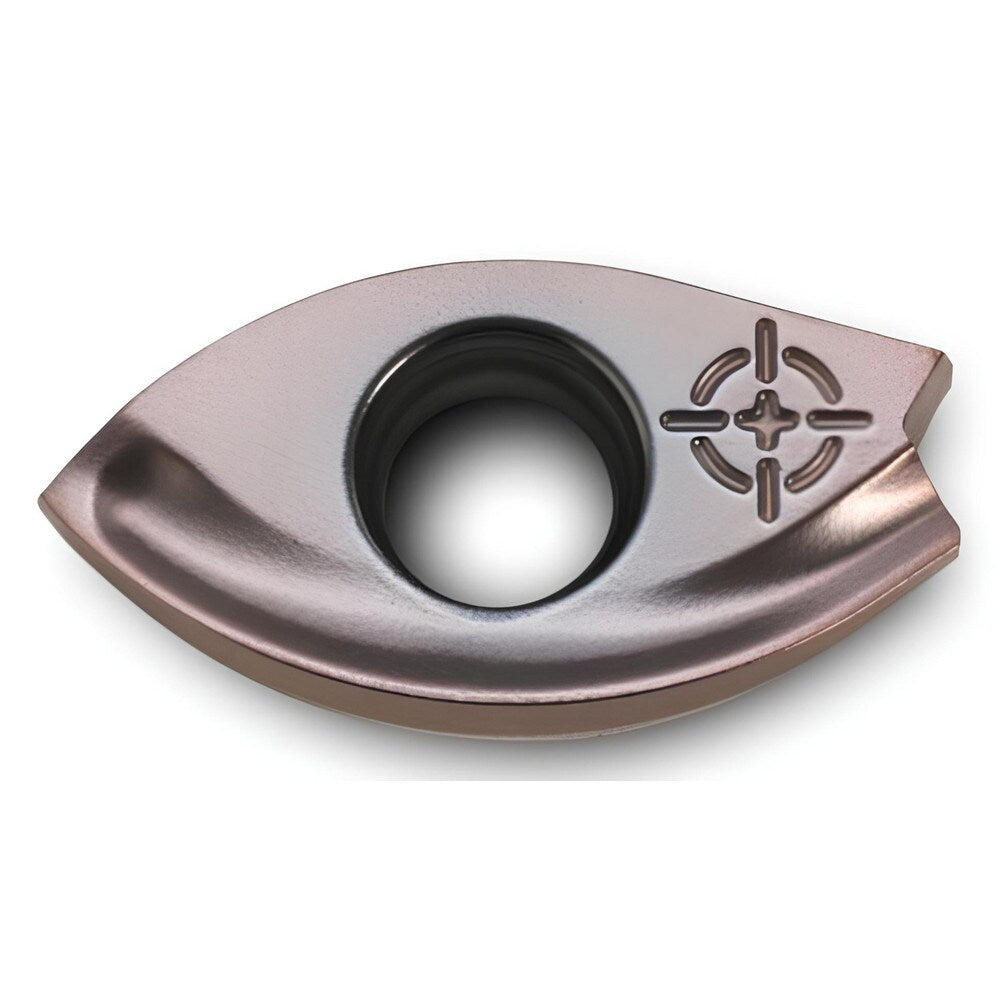

Brand: Ingersoll Cutting Tools / Part #: 6175905
Item #: 67287912
Brand: Ingersoll Cutting Tools
Model #: 6175905
Product Specifications
| Insert Style | NBEU |
| Insert Size Code | 1603 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2035 |
| Inscribed Circle (Decimal Inch) | 0.2690 |
| Corner Radius (Inch) | 5/16 |
| Insert Hand | Right Hand |
| Series | NBEU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4890 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | NBEU1603R |
| Manufacturers Catalog Number | NBEU1603R IN2035 |
| Cutter Series Compatibility | 1TW. |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 12.4200 |
| Insert Holding Method | Screw |
| Thickness (mm) | 3.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.2690 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4890 |
