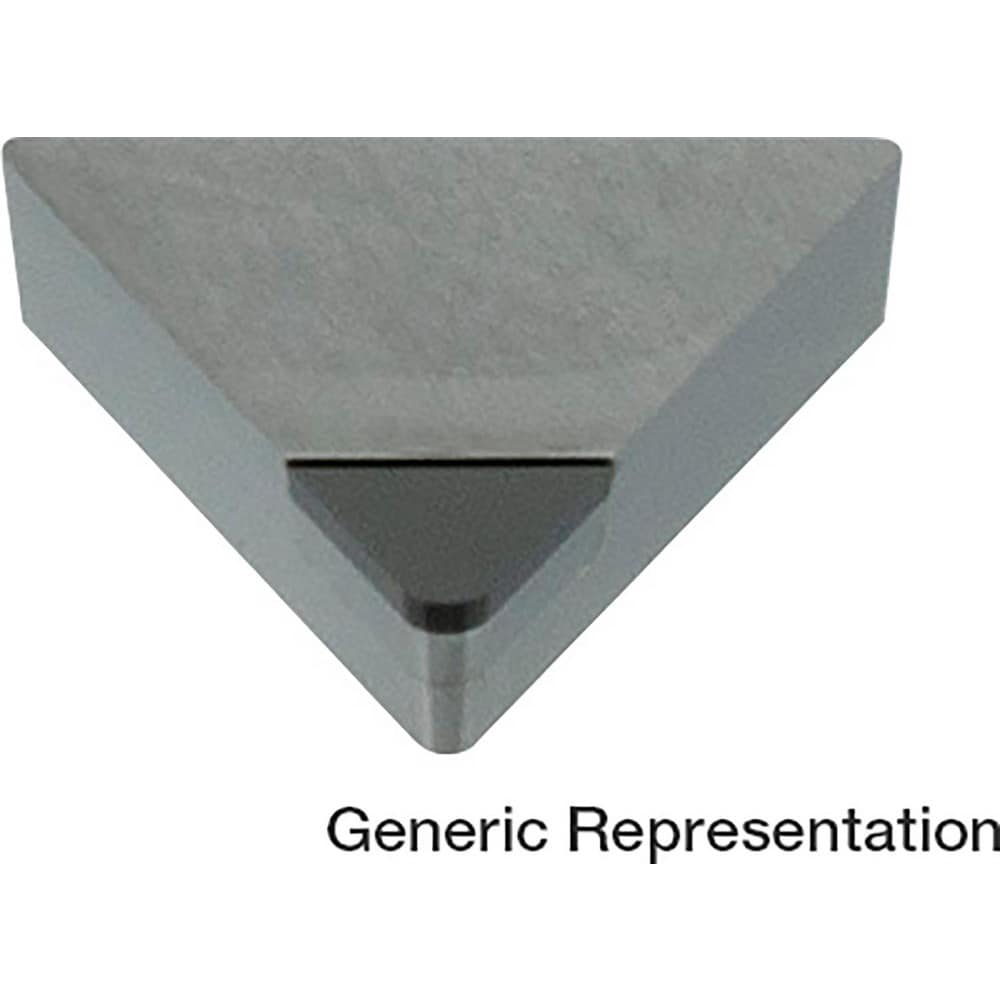

Brand: Sumitomo / Part #: 16HQCJG
Item #: 90996992
Brand: Sumitomo
Model #: 16HQCJG
Product Specifications
| Insert Style | TEGN |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | DA1000 |
| Corner Radius (mm) | 0.80 |
| Insert Material | Polycrystalline Cubic Boron Nitride (PCBN) |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 6.35 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Clearance Code | E |
| Tolerance Code | G |
| Relief Angle | 20.000 |
| Series | DA1000 |
| Manufacturers Catalog Number | NFTEGN222-DA1000 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 11.00 |
