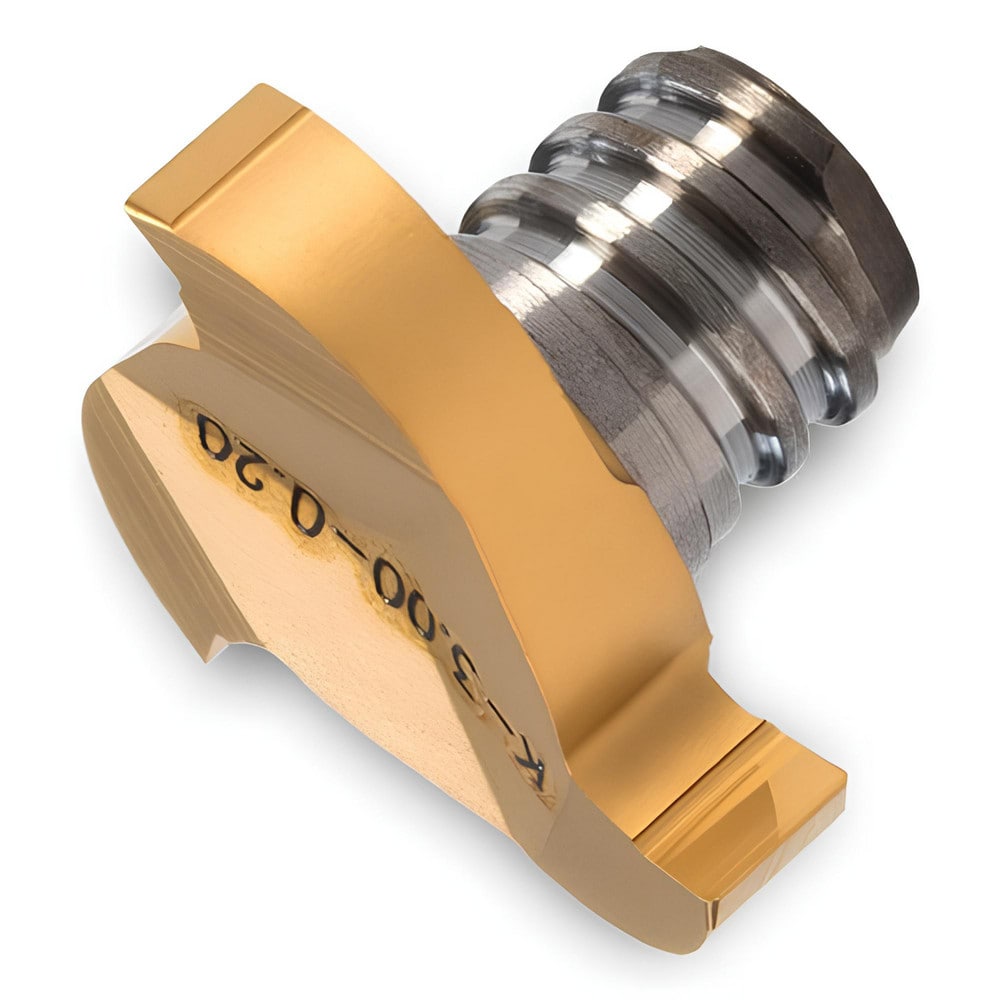

Brand: Ingersoll Cutting Tools / Part #: 5873284
Item #: 94514668
Brand: Ingersoll Cutting Tools
Model #: 5873284
Product Specifications
| Milling Tip Type | T-Slot |
| Milling Tip Style | 16T |
| Maximum Depth of Cut (mm) | 3.80 |
| Cutting Diameter (mm) | 17.70 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 3.80 |
| Manufacturer Grade | IN1530 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 16T |
| Coating Process | PVD |
| Corner Radius (mm) | 5.08 |
| Cutting Width (mm) | 2.390 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Thread Size | T06 |
| Manufacturers Catalog Number | 16T17723T6RK02 |
| Length of Cut (mm) | 2.5300 |
| Coolant Through | No |
| Overall Length (mm) | 2.5300 |
| Included Angle Degree | 90 |
| Coating/Finish | TiCN; TiN |
| Number Of Flutes | 3 |
