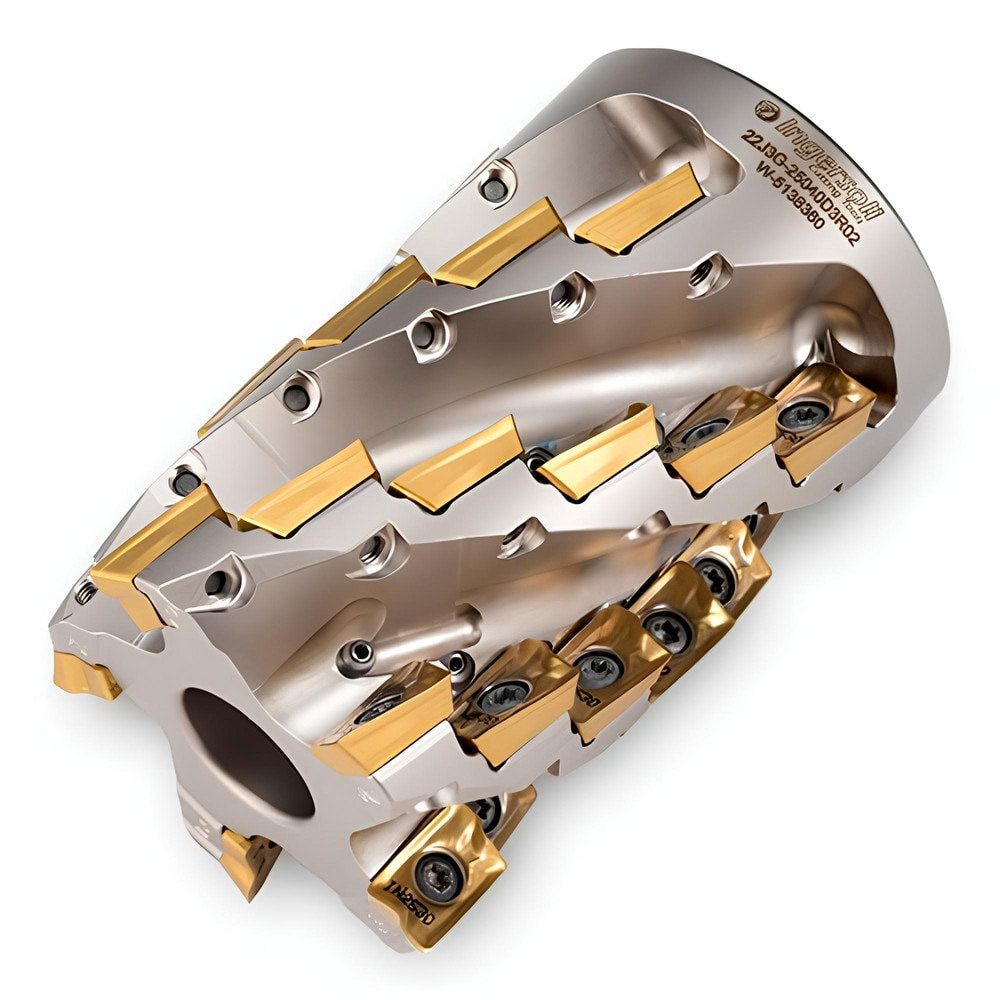

Brand: Ingersoll Cutting Tools / Part #: 2922317
Item #: 96672761
Brand: Ingersoll Cutting Tools
Model #: 2922317
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Minimum Cutting Diameter (mm) | 63.50 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 2.2700 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 1705 |
| Maximum Ramping Angle | 3.0 |
| Cutter Style | 22J3G |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Positive |
| Series | 22J3G |
| Overall Height (Inch) | 3 |
| Overall Height (Decimal Inch) | 3.0000 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Pitch Type | Close |
| Tool Application | Facing; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 2.2700 |
| Complete Insert Compatibility | AOMT1705? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 22J3G-25030D3R02 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 5 |
