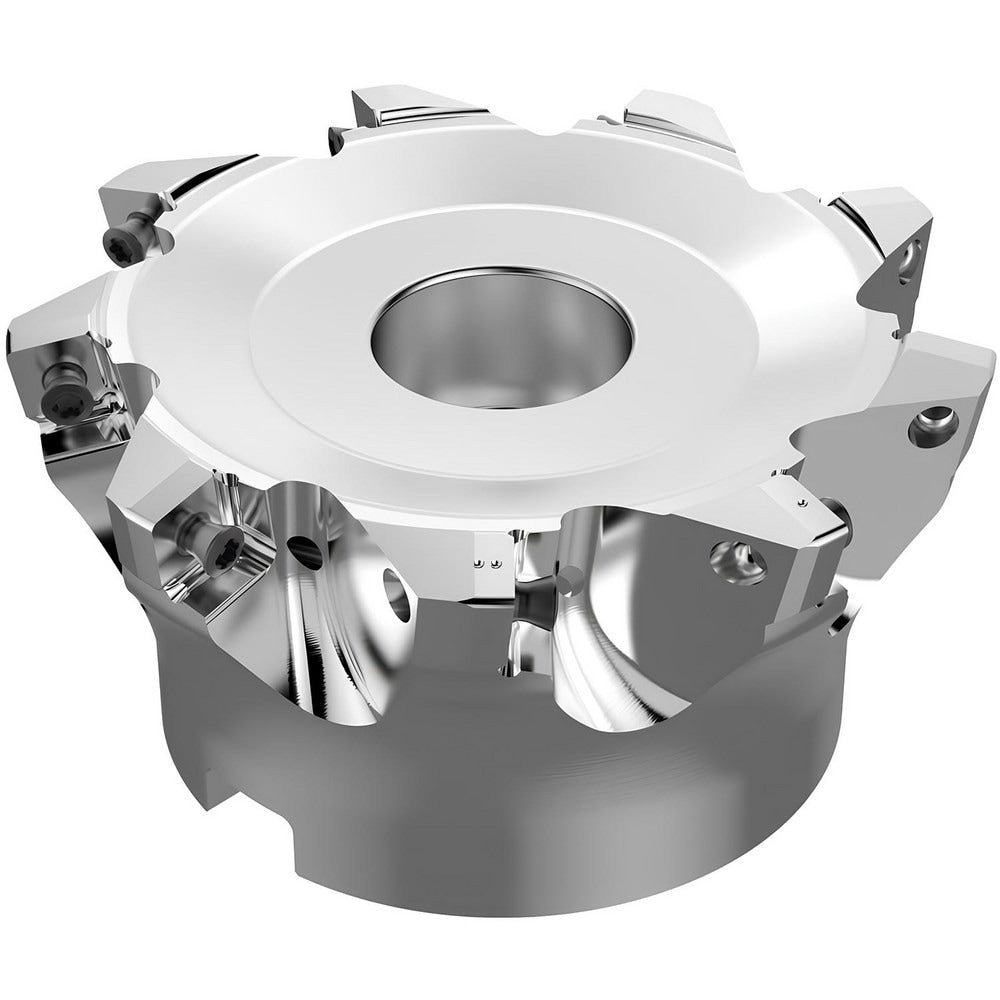

Brand: Seco / Part #: 10132522
Item #: 61223954
Brand: Seco
Model #: 10132522
Product Specifications
| Minimum Cutting Diameter (mm) | 102.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Arbor Hole Diameter (mm) | 2.50 |
| Compatible Insert Size Code | 1405 |
| Maximum Ramping Angle | 0.9 |
| Cutter Style | R220.21 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.21 |
| Keyway Width (mm) | 16.40 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum RPM | 6800.000 |
| Complete Insert Compatibility | SPKT1405 |
| Manufacturers Catalog Number | R220.21-0125-SP14.9A |
| Style | R220.21 |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Coolant Through | Yes |
