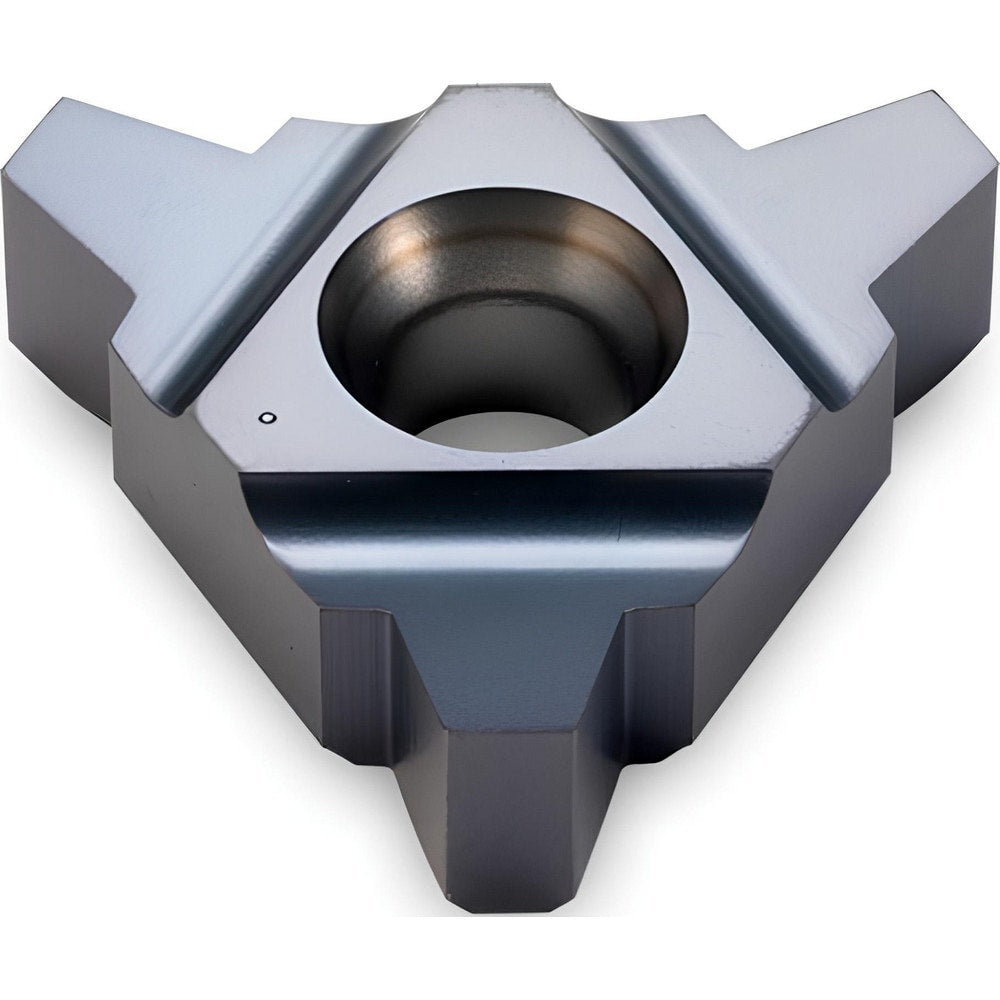

Brand: Ingersoll Cutting Tools / Part #: 5998666
Item #: 07333222
Brand: Ingersoll Cutting Tools
Model #: 5998666
Product Specifications
| Insert Style | 27UI |
| Insert Size Code | 27 |
| Insert Material | Carbide |
| Manufacturer Grade | TT7010 |
| Thread Type | Internal & External |
| Pitch (mm) | 9.00 |
| Thread Standard | Trapezoidal |
| Insert Hand | Neutral |
| Included Angle | 30.00 |
| Chipbreaker | None |
| Series | Trapeze DIN U-Type |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 5/8 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Ansi Code | 27UIRL9TR |
| Iso Code | 27UIRL9TR |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.539 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.118 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Thickness (Decimal Inch - 4 Decimals) | 0.2510 |
| Coating/Finish | TiCN; TiN |
