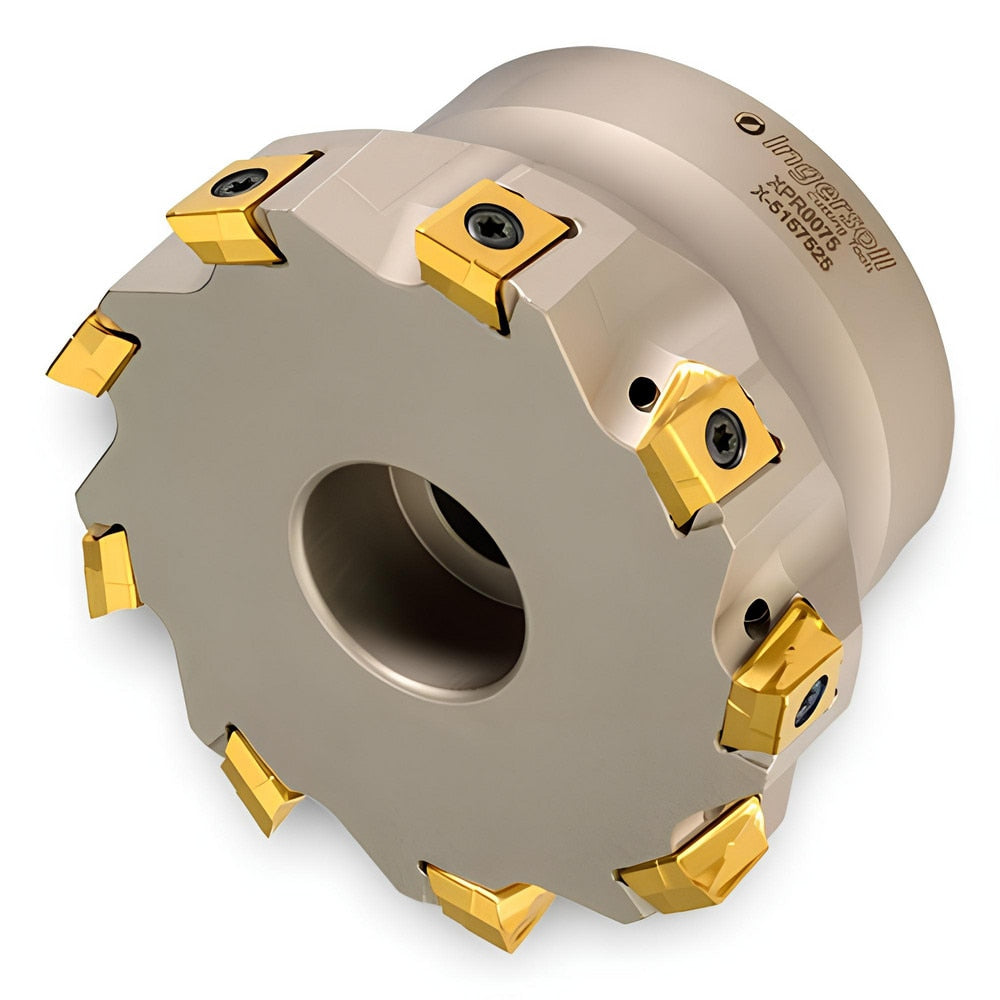

Brand: Ingersoll Cutting Tools / Part #: 2925987
Item #: 96440409
Brand: Ingersoll Cutting Tools
Model #: 2925987
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Minimum Cutting Diameter (mm) | 63.50 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4790 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 324 |
| Maximum Ramping Angle | 0.8 |
| Cutter Style | EJ5D |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | EJ5D |
| Overall Height (Decimal Inch) | 1.5700 |
| Keyway Width (Inch) | 5/16 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Pitch Type | Normal |
| Tool Application | Facing; Helical Interpolation; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.4790 |
| Complete Insert Compatibility | CGM324R0? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | EJ5D-02R02 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 9 |
