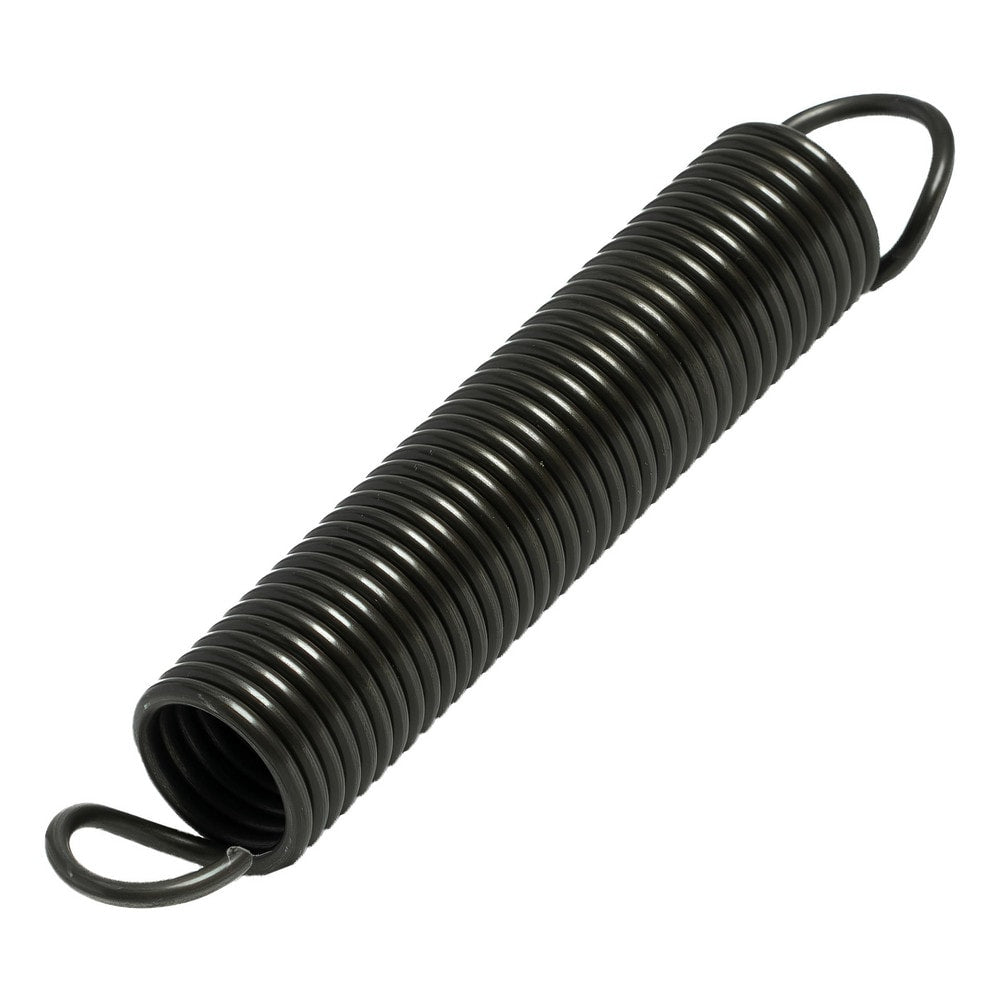

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 13.0000; Spring Rate: 0.6000; Material: Music Wire; Overall Length (Decimal Inch): 6.5840
Item #: 03060498
Brand: Associated Spring Raymond
Model #: MCEM1301200165M
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 13.0000 |
| Spring Rate | 0.6000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 6.5840 |
| Initial Tension (N) | 4.79 |
| Maximum Extended Length (mm) | 525.31 |
| Free Length (mm) | 164.900 |
| Inside Hook Length (Fractional Inch) | 6-1/2 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 1.20 |
| UNSPSC Code | 31161907 |
