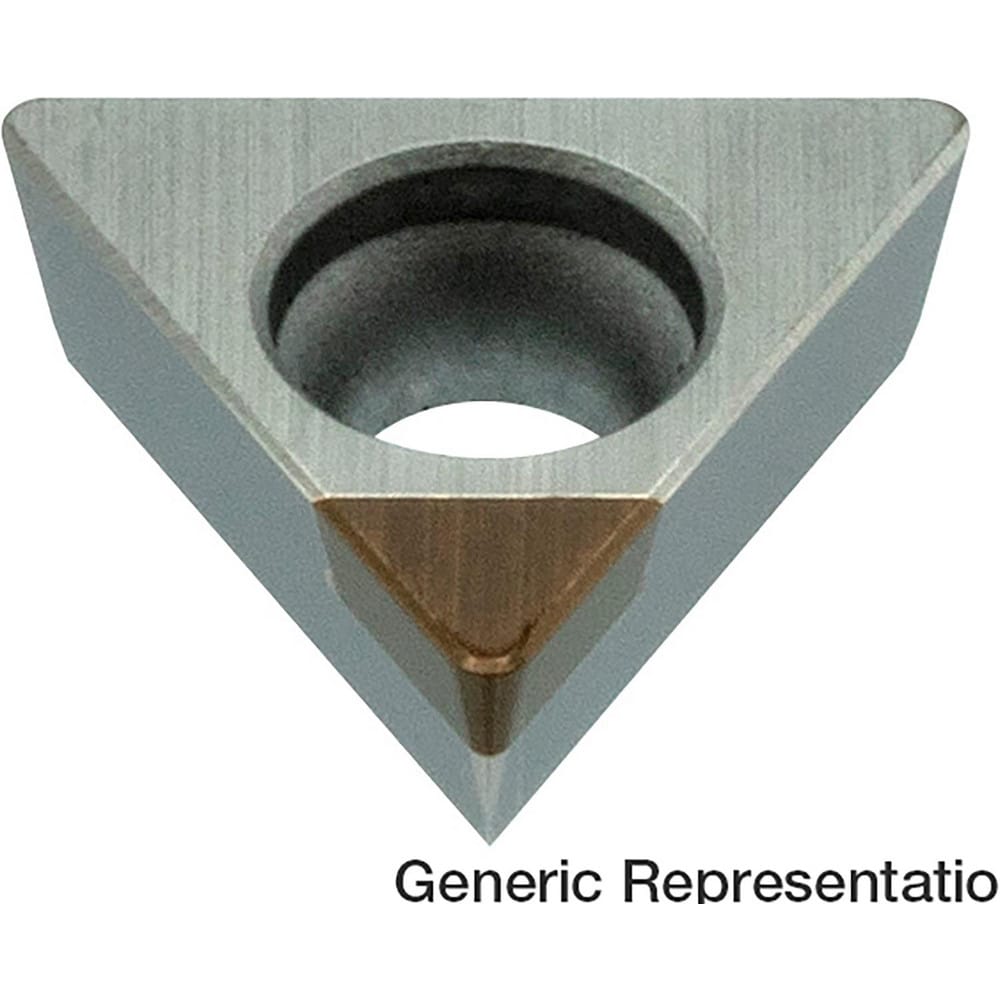

Brand: Sumitomo / Part #: 16JYDTN
Item #: 93296275
Brand: Sumitomo
Model #: 16JYDTN
Product Specifications
| Insert Style | TPGA |
| Insert Shape Code | T |
| Insert Size Code | 1.81.50.5 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | BN7000 |
| Corner Radius (mm) | 0.20 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 5.56 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Clearance Code | P |
| Tolerance Code | G |
| Relief Angle | 11.000 |
| Series | BN7000 |
| Manufacturers Catalog Number | NUTPGA1.81.50.5-BN7000 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 9.60 |
