Made in USA - Panel Rivets Type: Panel Rivet Shank Type: Standard
Item #: 19287325
Brand: Made in USA
Model #:
Features and Benefits

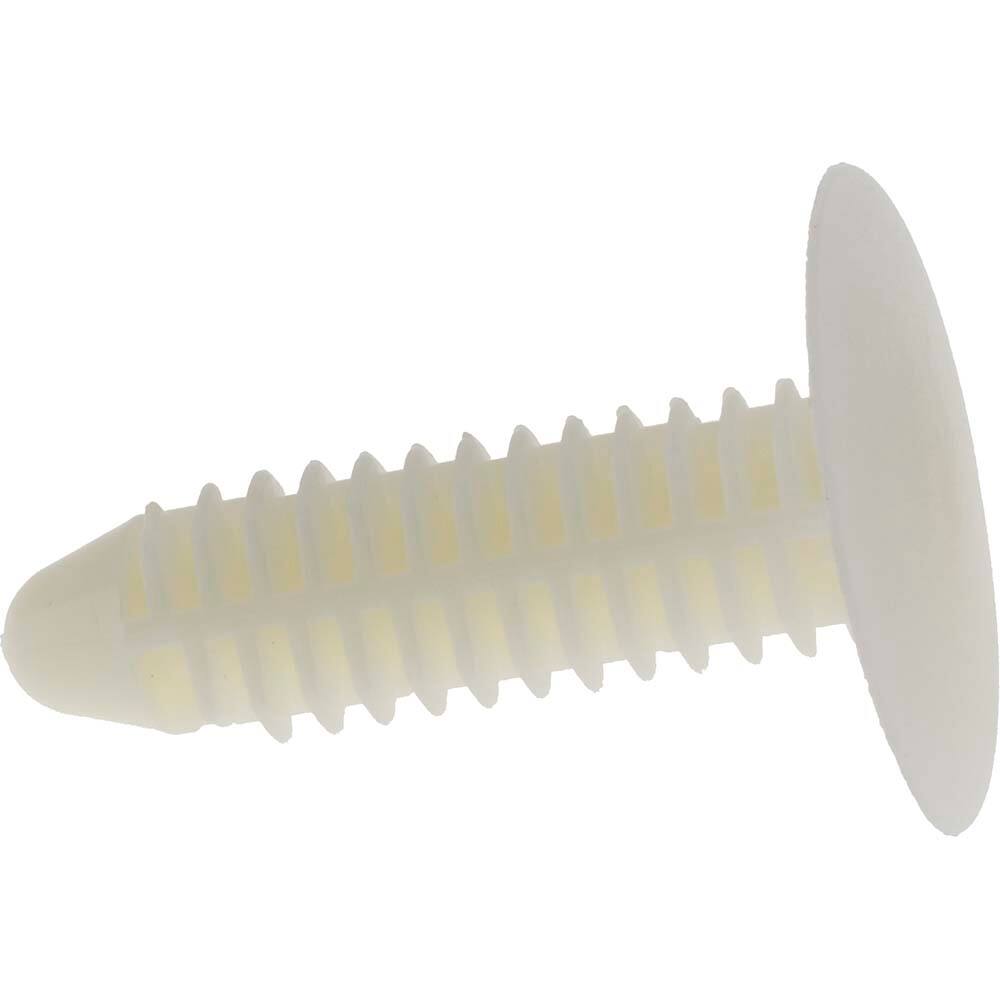

Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Product Specifications
Panel Rivets; Type: Panel Rivet ; Shank Type: Standard ; Head Type: Round ; Minimum Hole Diameter (Decimal Inch): 0.2810 ; Maximum Hole Diameter (Decimal Inch): 0.2810 ; Minimum Material Thickness (Decimal Inch): 0.1380
| Type | Panel Rivet |
| Shank Type | Standard |
| Head Type | Round |
| Minimum Hole Diameter (Decimal Inch) | 0.2810 |
| Maximum Hole Diameter (Decimal Inch) | 0.2810 |
| Minimum Material Thickness (Decimal Inch) | 0.1380 |
| Maximum Material Thickness (Decimal Inch) | 0.7100 |
| Head Diameter (Decimal Inch) | 0.7480 |
| Head Height (Decimal Inch) | 0.0430 |
| Length Under Head (Decimal Inch) | 1.0770 |
| Overall Length (Decimal Inch) | 1.10300 |
| Body Diameter (Decimal Inch) | 0.3210 |
| Color | White |
| Material | Nylon |
