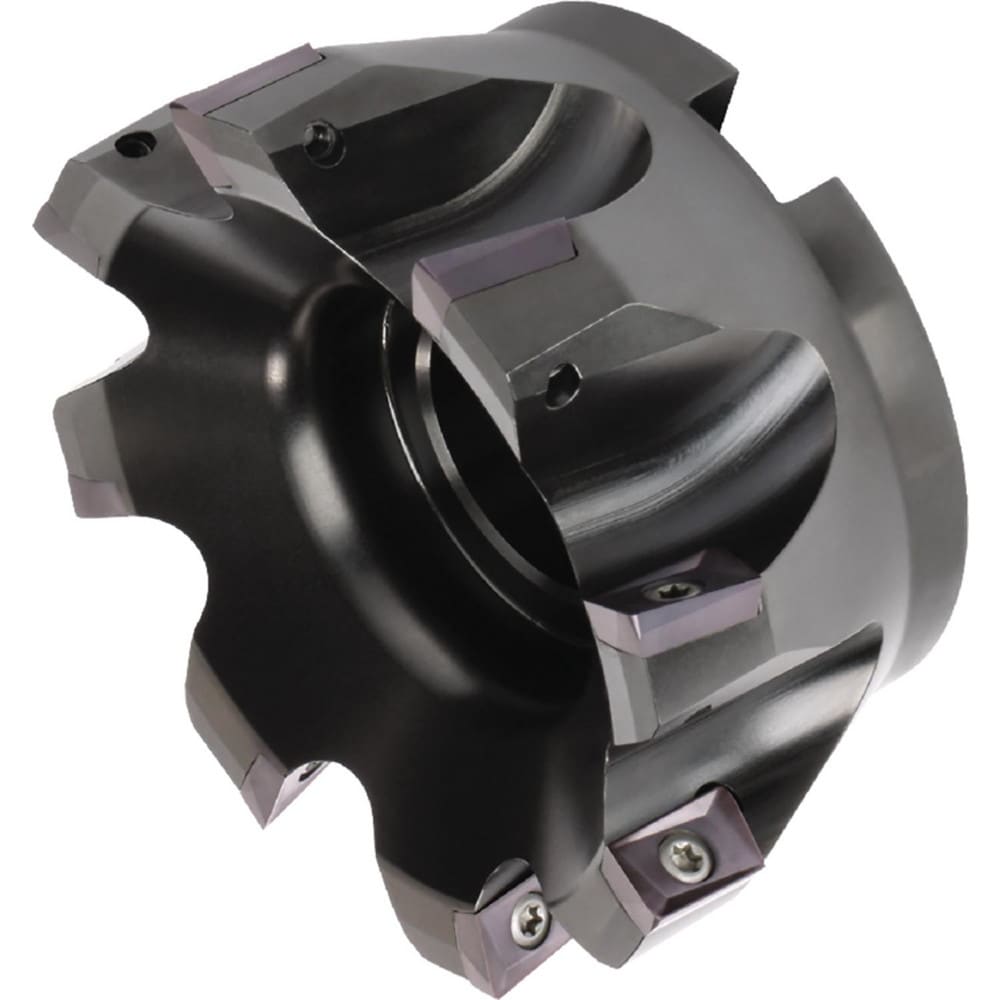

Brand: Widia / Part #: 6425386
Item #: 09967159
Brand: Widia
Model #: 6425386
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XP..16.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M680 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M680-16 |
| Maximum Body Diameter (Decimal Inch) | 1.2598 |
| Overall Height (Decimal Inch) | 1.5000 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7000 |
| Maximum RPM | 12500.000 |
| Tool Application | Facing; Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number of Adjustable Pockets | 0 |
| ISO Number | M680D200Z05S075XP16 |
| Complete Insert Compatibility | XP..16.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M680D200Z05S075XP16 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
