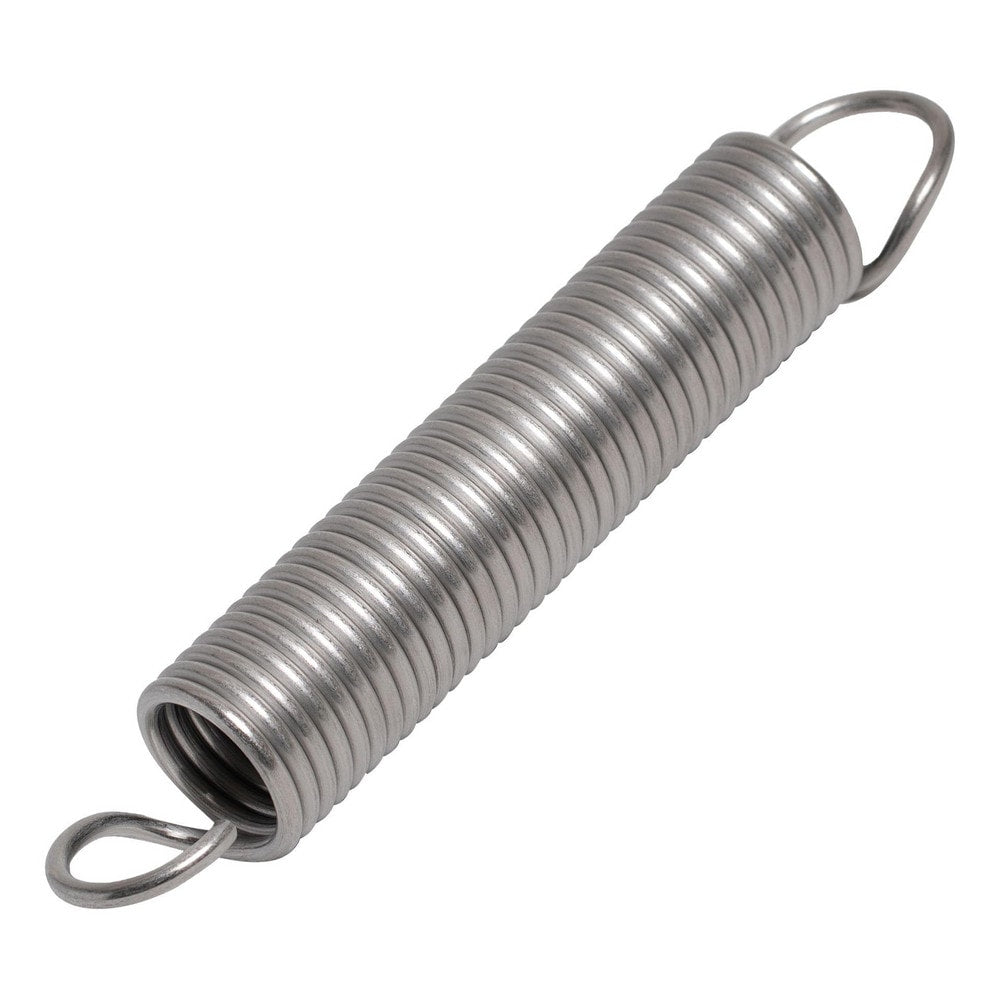

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 25.0000; Spring Rate: 76.3000; Material: Stainless Steel; Overall Length (Decimal Inch): 11.5740
Item #: 02936714
Brand: Associated Spring Raymond
Model #: MCEM2505000284S
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 25.0000 |
| Spring Rate | 76.3000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 11.5740 |
| Initial Tension (N) | 378.5 |
| Maximum Extended Length (mm) | 324.85 |
| Free Length (mm) | 284.000 |
| Inside Hook Length (Fractional Inch) | 11-3/16 |
| Standards | EN 10270-3; JIS G4314 SUS 302; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 5.00 |
| UNSPSC Code | 31161907 |
