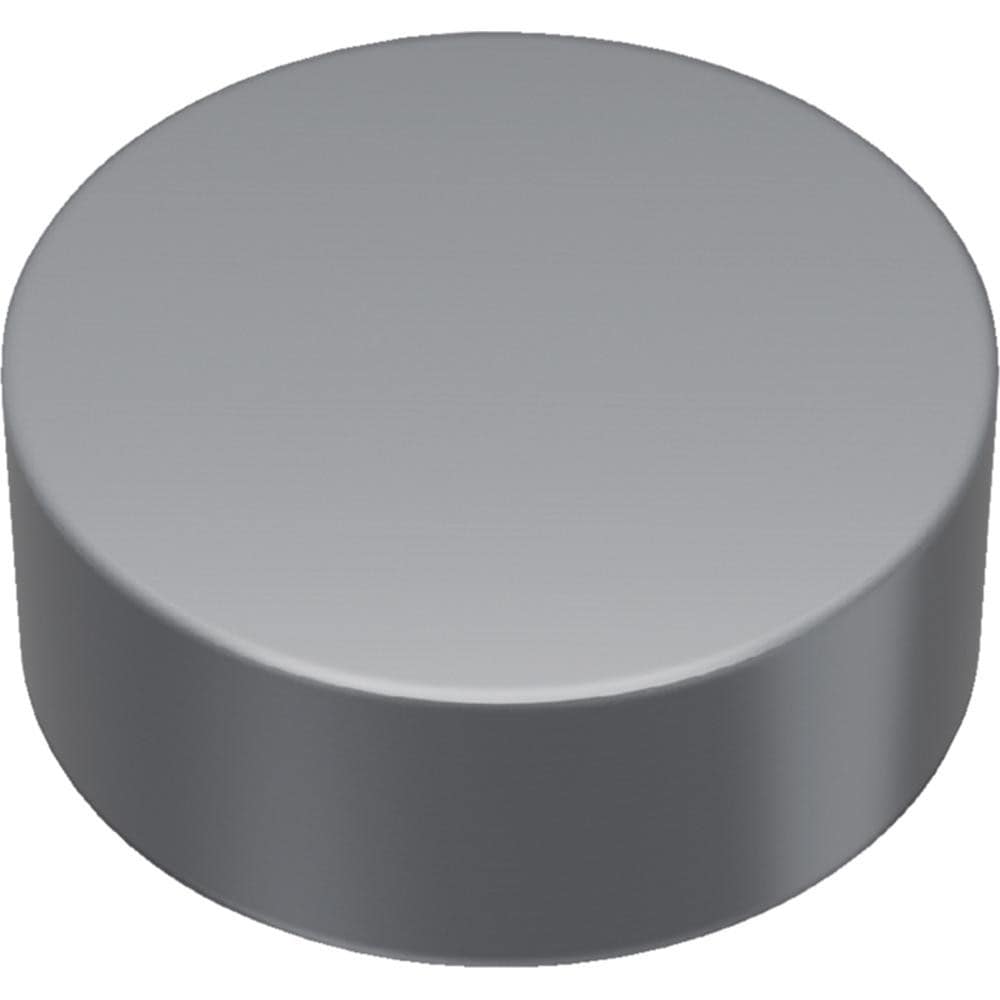

Brand: Widia / Part #: 3883317
Item #: 95246187
Brand: Widia
Model #: 3883317
Product Specifications
| Insert Style | RNM |
| Insert Shape Code | R |
| Insert Size Code | 43 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | WBK40U |
| Corner Radius (Decimal Inch) | 0.2500 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Relief Angle | 0.000 |
| Series | RNMN |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 2 |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | RNM43S0820 |
| Iso Code | RNMN120400S02020 |
| Manufacturers Catalog Number | RNM43S0820 |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Cutting Edge Style | Chamfered and Rounded |
| Style | RNMN |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
