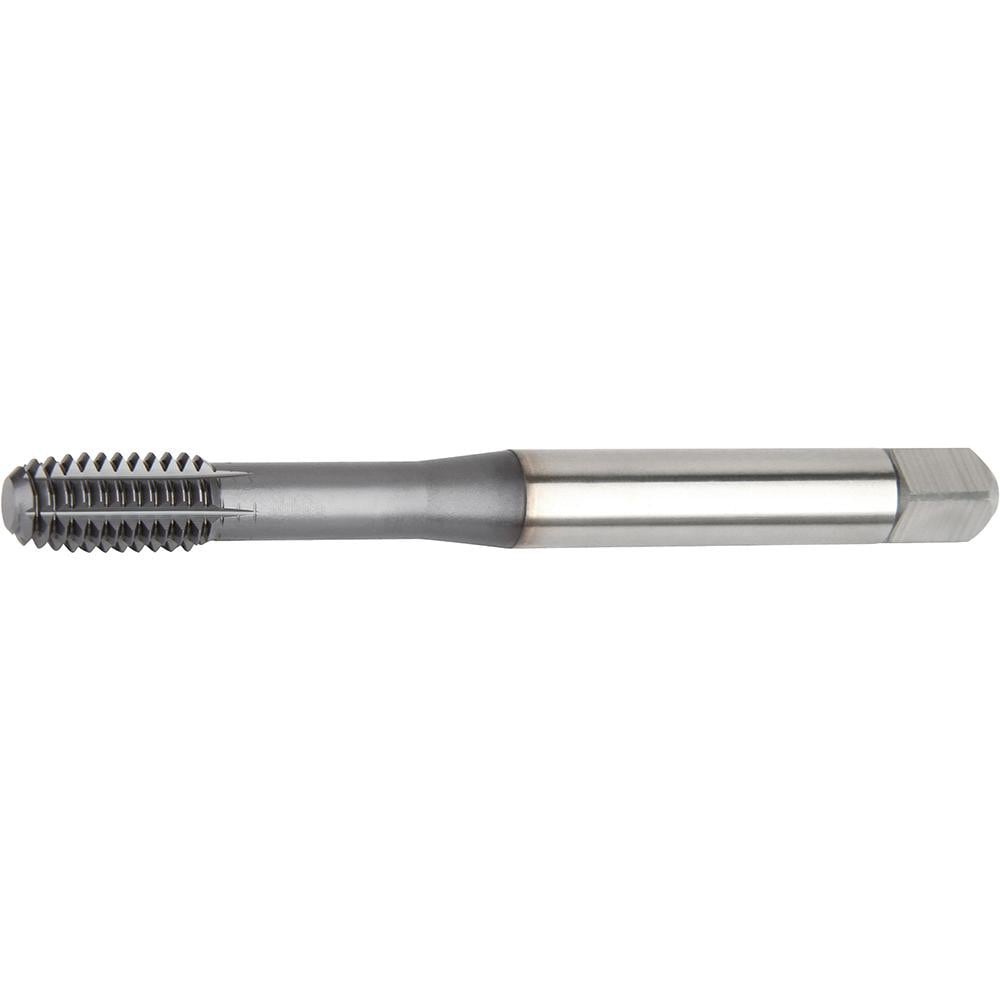

Brand: Widia / Part #: 5945129
Item #: 98886419
Brand: Widia
Model #: 5945129
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Overall Length (Decimal Inch) | 4.3300 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H7 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.7900 |
| Thread Depth | 2.0100 |
| Thread Depth (Decimal Inch) | 2.0100 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Neck Length (Decimal Inch) | 1.2200 |
| Square Length (Decimal Inch) | 0.5600 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT26 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 2.0100 |
| Shank Length (Decimal Inch) | 2.3200 |
| Square Size (Decimal Inch) | 0.3570 |
| Threads per Inch | 18 |
| Class Of Fit | 2B |
| Coolant Through | No |
