Brand: Widia / Part #: 5697963
Item #: 97986756
Brand: Widia
Model #: 5697963
Product Specifications
| Cutting Direction | Neutral |
| Hand of Holder | Neutral |
| Compatible Insert Size Code | 2509.. |
| Toolholder Style | DSDNN |
| Rake | Negative |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 45.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | SN..2509.. |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Series | DSDN |
| Overall Length (mm) | 250.0000 |

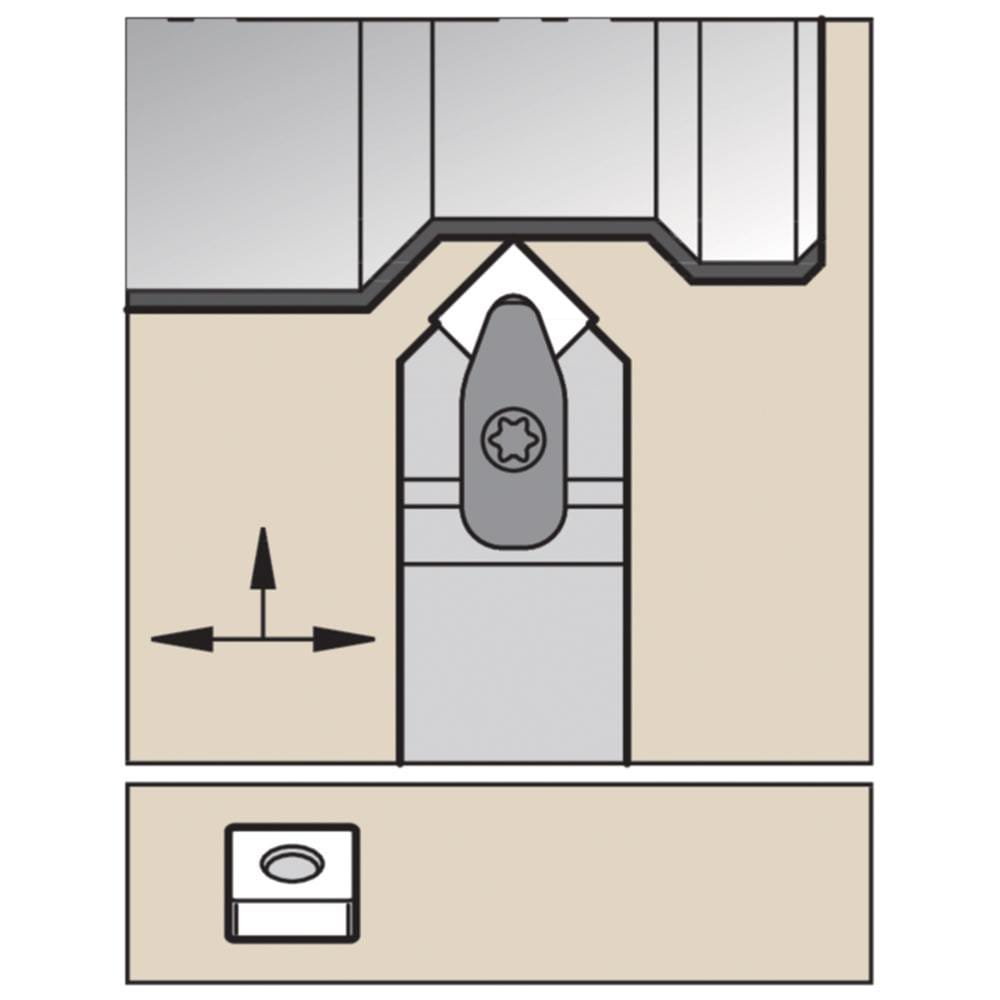

| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 58.93 |
| Back of Bar to Cutting Edge (mm) | 19.50 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 25.40 |
| Toolholder Material | Steel |
| ISO Number | DSDNN4040S25KC09 |
| Complete Insert Compatibility | SN.. |
| Insert Thickness | 9.53 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 25.40 |
