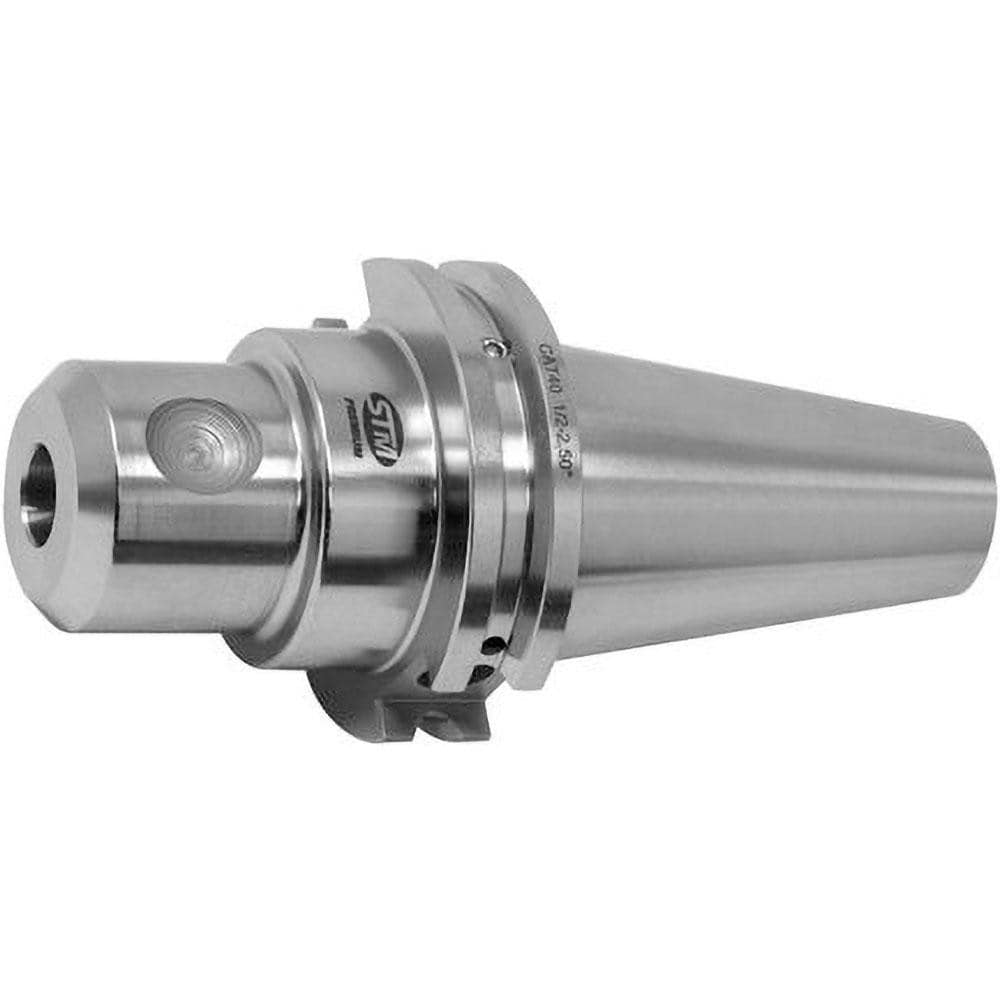

Brand: STM Premium / Part #: 525120
Item #: 62407150
Brand: STM Premium
Model #: 525120
Product Specifications
| Shank Type | Taper |
| Shank Diameter (Decimal Inch) | 1.3800 |
| Overall Length (Decimal Inch) | 8.0000 |
| Taper Size | CAT 50 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3800 |
| Projection (Inch) | 4 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.5000 |
| Maximum RPM | 8000.000 |
| TIR (Decimal Inch) | 0.000200 |
| Coolant Type | Through-Spindle |
| No Description | 4" |
| Flange Diameter (Decimal Inch) | 3.875 |
| Additional Information | Set Scre: 7/16-20 |
