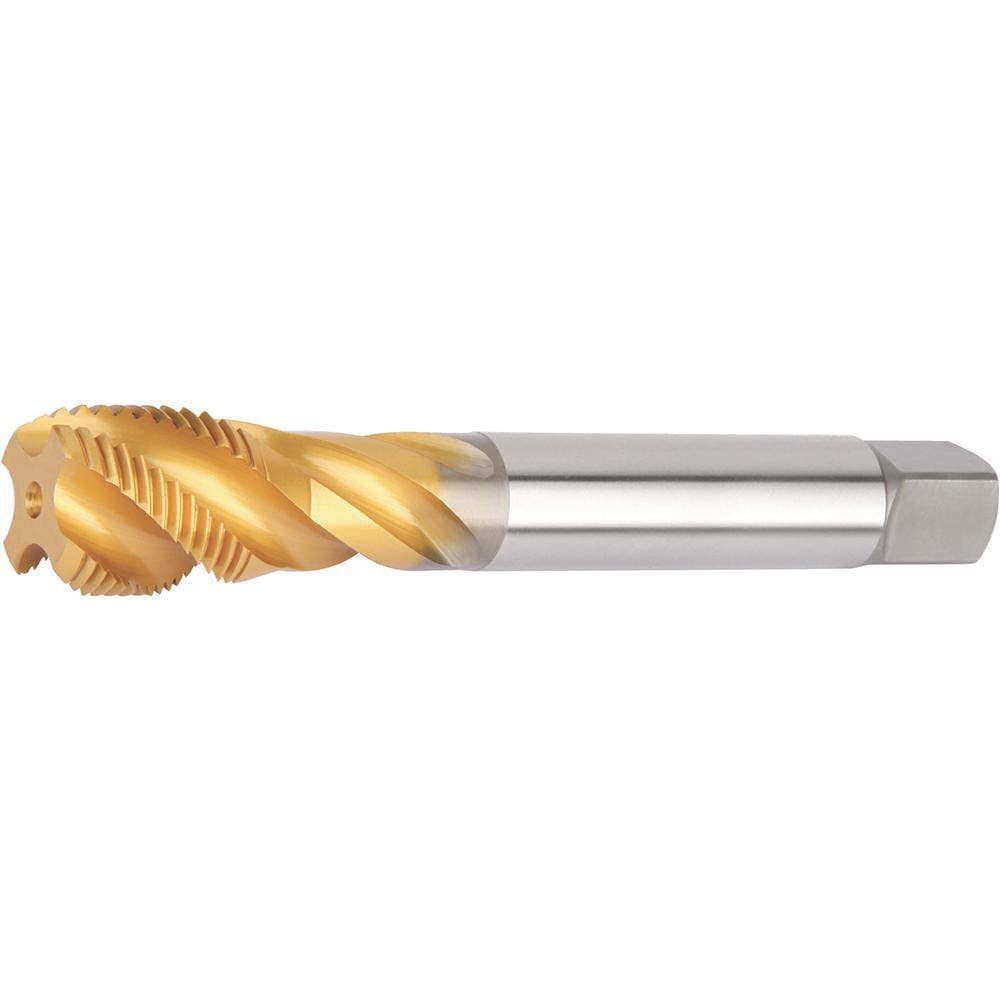

Brand: Widia / Part #: 6058871
Item #: 83166546
Brand: Widia
Model #: 6058871
Product Specifications
| Thread Size (Inch) | 1/2-14 |
| Overall Length (Decimal Inch) | 4.9200 |
| Chamfer | Semi-Bottoming |
| Thread Standard | BSPP |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Flute Direction | Right Hand |
| Helix Angle | 42 |
| Material | Solid Carbide |
| Thread Length (Decimal Inch) | 0.7100 |
| Thread Depth (Decimal Inch) | 2.1700 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Square Length (Decimal Inch) | 0.5900 |
| Square Size (Decimal Inch) | 0.5000 |
| Projection (Decimal Inch) | 2.1700 |
| Application | Tapping |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 14.0 |
| Coating/Finish | TiN |
| Number Of Flutes | 4 |
