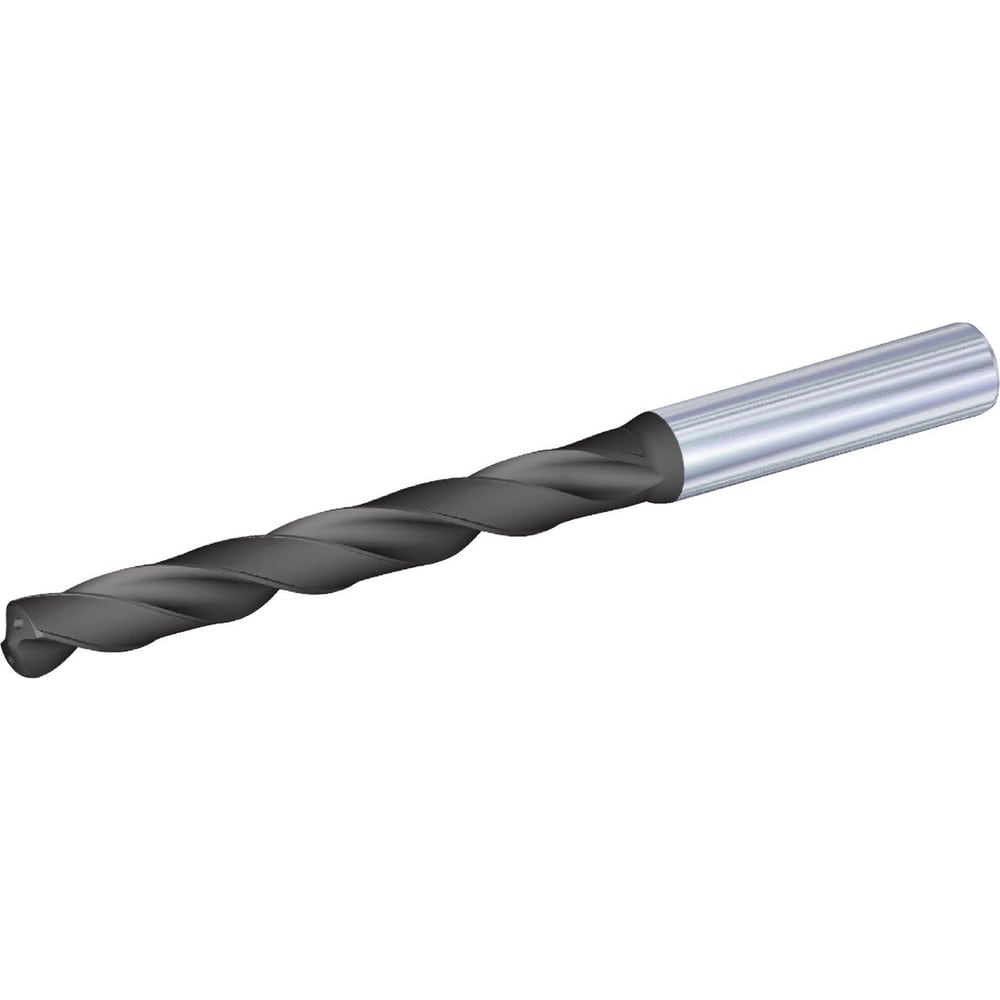

Brand: Widia / Part #: 4157015
Item #: 03499654
Brand: Widia
Model #: 4157015
Product Specifications
| Drill Bit Size (Wire) | #19 |
| Tool Material | Carbide |
| Coating/Finish | AlCrN |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | TDS413A |
| Point Type | Four Facet |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000200 to 0.000600 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Drill Bit Grade | WK15PD |
| Drill Bit Size (Decimal Inch) | 0.1660 |
| Drill Point Length (Decimal Inch) | 0.0273 |
| Overall Length (Decimal Inch) | 3.4252 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Length (Decimal Inch) | 1.4173 |
| Flute Length (Decimal Inch) | 1.9291 |
| Flute By Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6142 |
