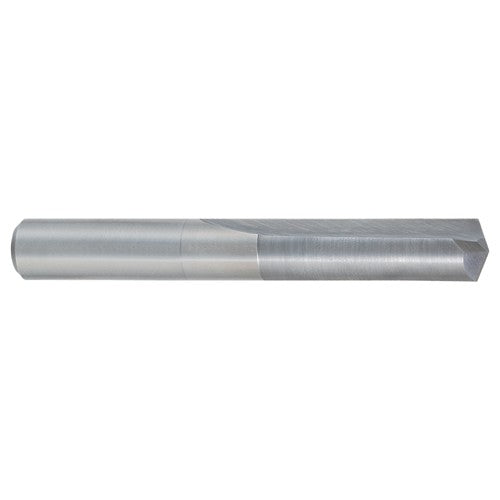

1/8″ Dia. × 1/8″ Shank × 7/8″ Flute Length × 1-7/8″ OAL, Bright, Solid Carbide Drill
Item #: TP602001250
Brand: OSG USA, Inc.
Model #: 200-1250
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ |
| Tool Type | Jobber Drill |
| Decimal Equivalent | 0.125″ |
| Flute Type | Straight |
| Length Group | Jobber |
| Measurement Type | Inch |
| Coating | Bright |
| Series/List # | 200 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Usable Length (LU) | 7/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Chip Flute (LCF) | 7/8″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1-7/8″ |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 7/8″ |
| Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
