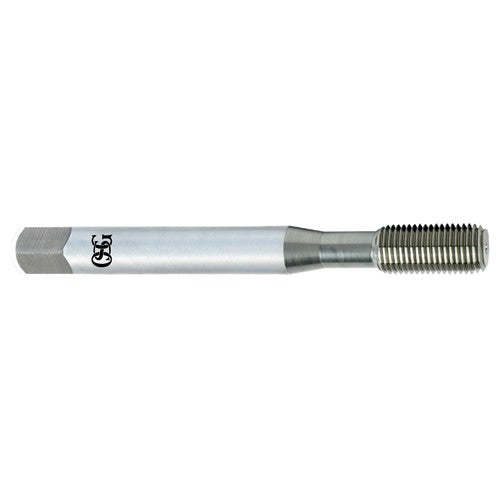

8-32 0 Fl H4 HSS-CO Forming Tap- TiN
Item #: TP221400114005
Brand: OSG USA, Inc.
Model #: 1400114005
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | #8 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.12″ |
| Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 3/4″ |
| Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.778″ |
| Chamfer | 1.5P |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Measurement Type | Wire Gage |
| Flute Count (NOF) | 0 |
| End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H4 |
| Cutting Edge Material | HSSCo |
| Thread Standard | UNC |
| Series/List # | 14001 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Thread Size | #8 - 32 |
