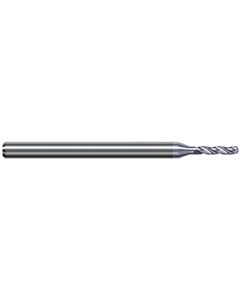

9.575 mm Dia. × 10 mm Shank Dia. × 125 mm OAL × 64 mm LCF, 130 Degrees, 5xD, 3 Flute, Helical Flute, TiB2 Solid Carbide Drills
Item #: GE90BAF3770C8
Brand: Harvey Tool
Model #: BAF3770-C8
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.575 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.575 mm |
| Tool Type | Miniature |
| Length Group | 5xD |
| Flute Type | Helical |
| Coating | TiB2 |
| Point Shape | Standard |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 64 mm |
| Point Angle (SIG) | 130 Degrees |
| Length Chip Flute (LCF) | 64 mm |
| Functional Length (LF) | 64 mm |
| Overall Length (OAL) | 125 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Number of Teeth | 3 |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
| Shape | High Performance |
| Single / Double End | Single End |
