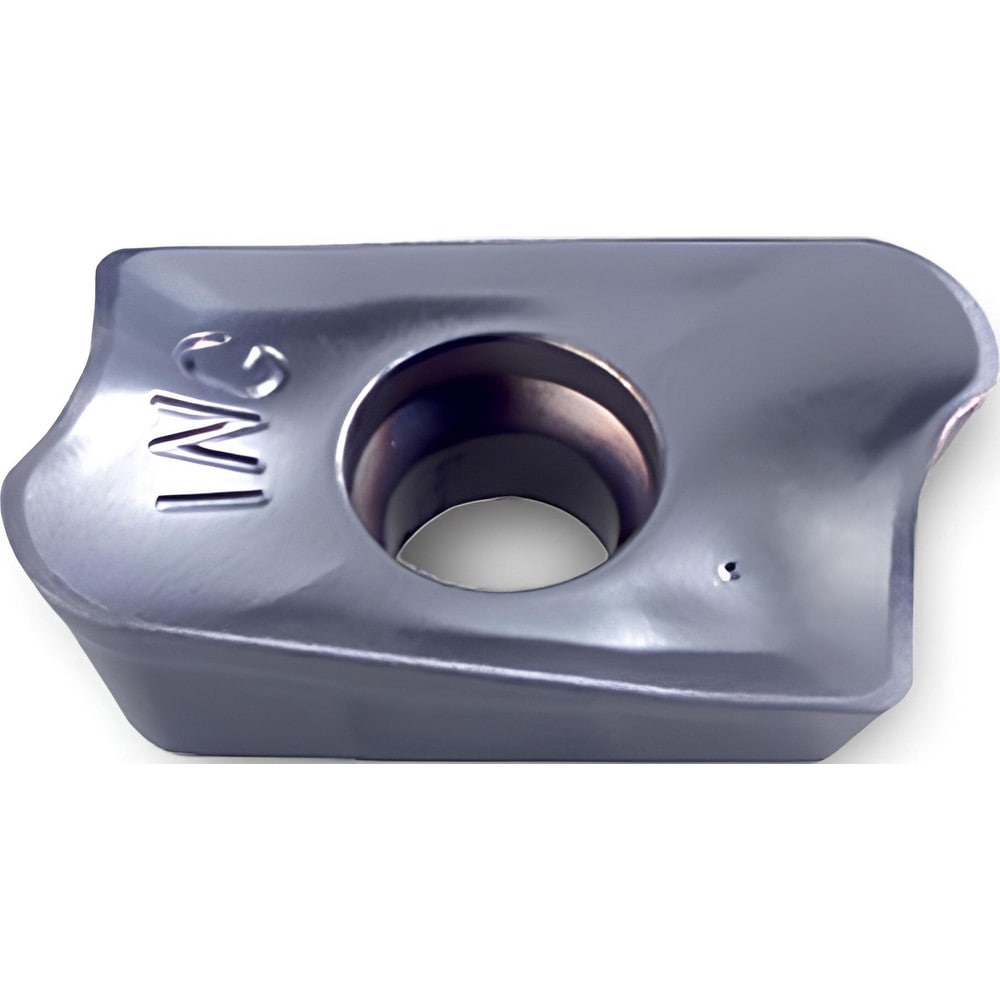

Brand: Ingersoll Cutting Tools / Part #: 5804914
Item #: 67300970
Brand: Ingersoll Cutting Tools
Model #: 5804914
Product Specifications
| Insert Style | APEB |
| Insert Size Code | 64 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2015 |
| Length (Inch) | 49/64 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 27/64 |
| Corner Radius (Inch) | 1/8 |
| Insert Hand | Right Hand |
| Series | APEB |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | APEB64R04 |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APEB64R04 IN2015 |
| Cutter Series Compatibility | 23J6G; 2J1E4W2A; 12J1E |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 16.5100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4220 |
| Multi-Use Tool | Yes |
