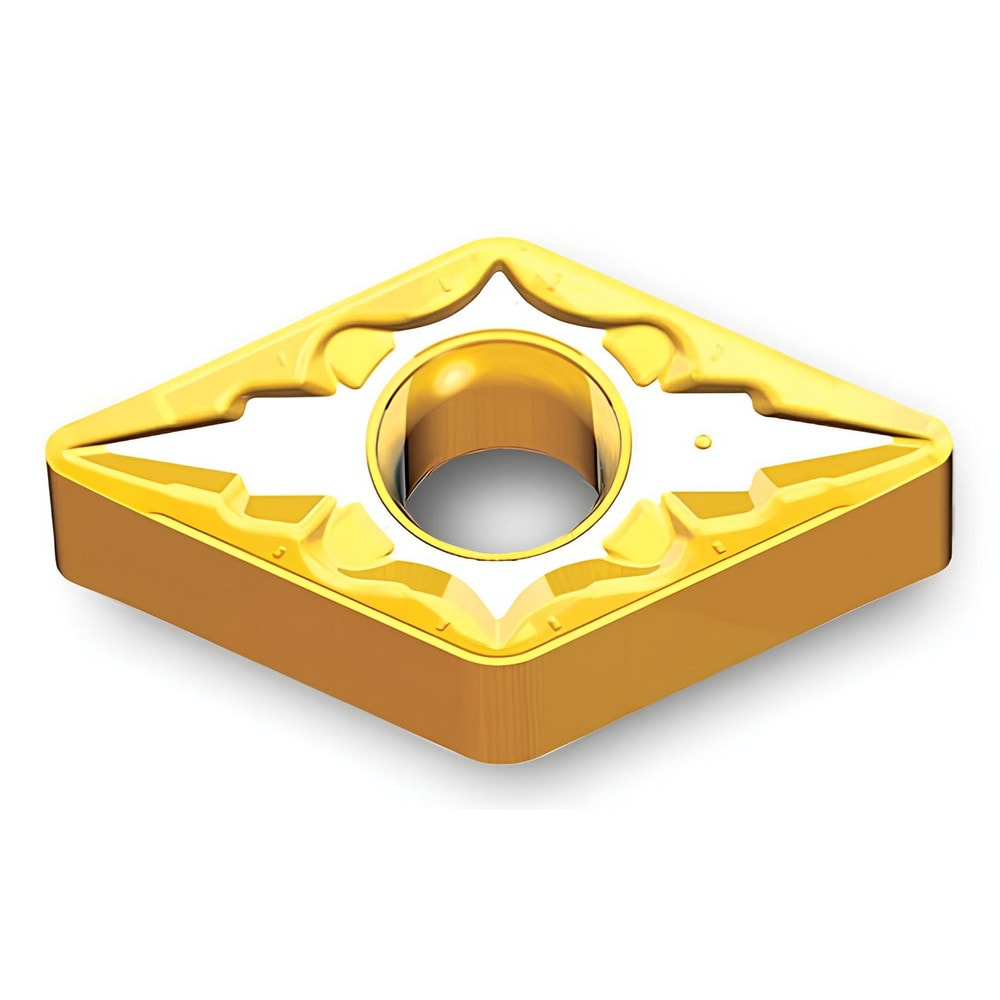

Brand: Ingersoll Cutting Tools / Part #: 6118173
Item #: 98882327
Brand: Ingersoll Cutting Tools
Model #: 6118173
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 3.53.53 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CT3000 |
| Corner Radius (Inch) | 3/64 |
| Insert Material | Cermet |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Inscribed Circle (Inch) | 7/16 |
| Insert Holding Method | Clamp |
| Width (Inch) | 7/16 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 7/32 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 90.00 |
| Relief Angle | 0.000 |
| Series | DNMG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5330 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | DNMG3.53.53 |
| Iso Code | DNMG130512 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | FM |
| Style | DNMG |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning |
