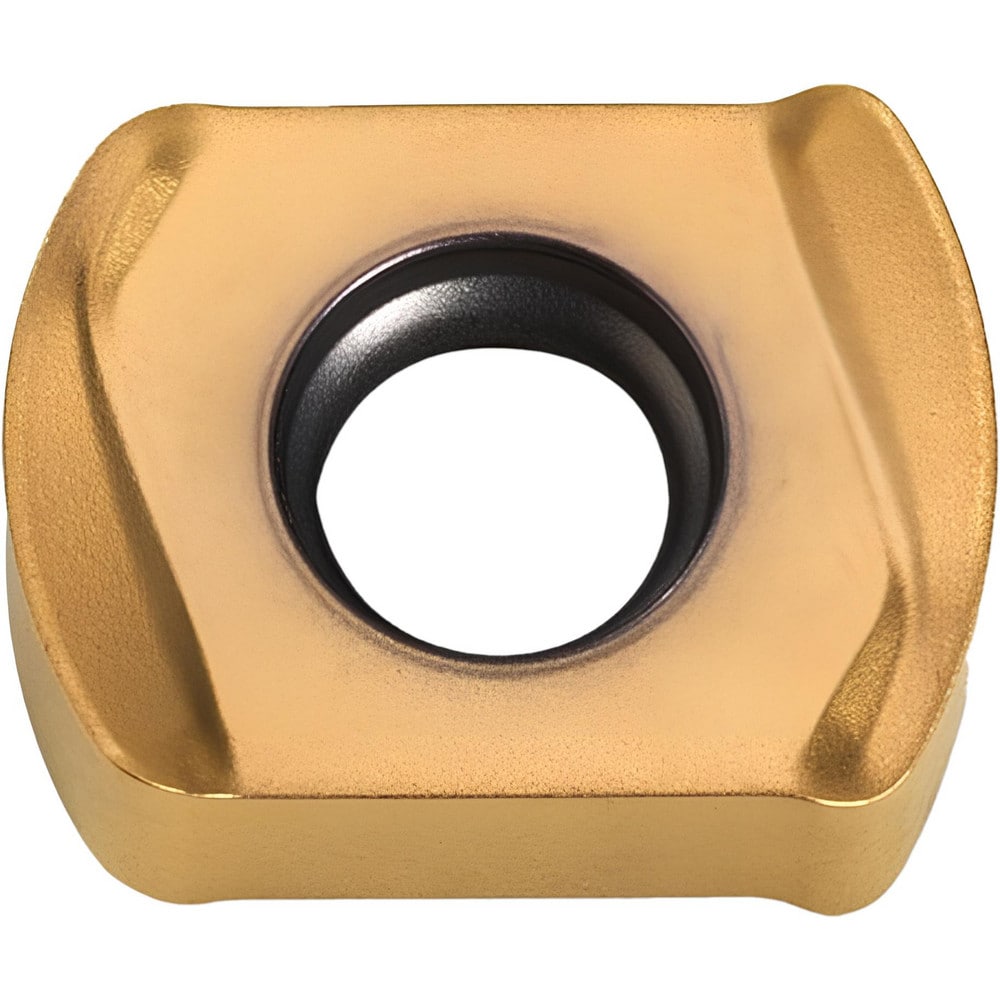

Brand: Ingersoll Cutting Tools / Part #: 5616591
Item #: 67306456
Brand: Ingersoll Cutting Tools
Model #: 5616591
Product Specifications
| Insert Style | UNLU |
| Insert Size Code | 0904 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Length (Inch) | 15/32 |
| Inscribed Circle (Decimal Inch) | 0.3610 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4690 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | UNLU0904M0TR-MM |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | UNLU0904M0TR-MM IN2505 |
| Cutter Series Compatibility | 1TG1G; TG.G |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 11.9100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.3610 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Multi-Use Tool | Yes |
