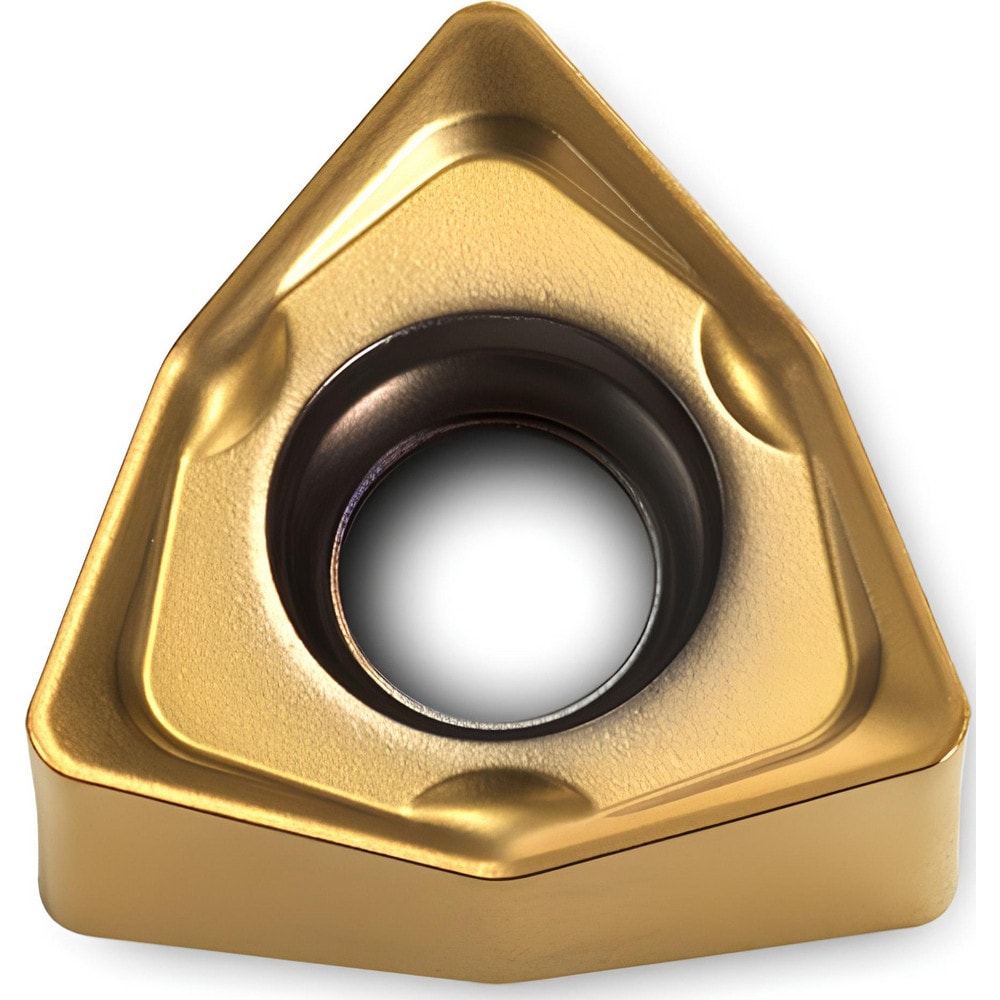

Brand: Ingersoll Cutting Tools / Part #: 6128622
Item #: 67307439
Brand: Ingersoll Cutting Tools
Model #: 6128622
Product Specifications
| Insert Style | WNMU |
| Insert Size Code | 060608 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Decimal Inch) | 0.3700 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | WNMU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2300 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | WNMU060608N |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | WNMU060608N IN2530 |
| Cutter Series Compatibility | 1WJ1F; FHU; WJ5F |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Trigon |
| Length of Cut (mm) | 5.8400 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Thickness (Decimal Inch - 4 Decimals) | 0.2440 |
| Multi-Use Tool | Yes |
