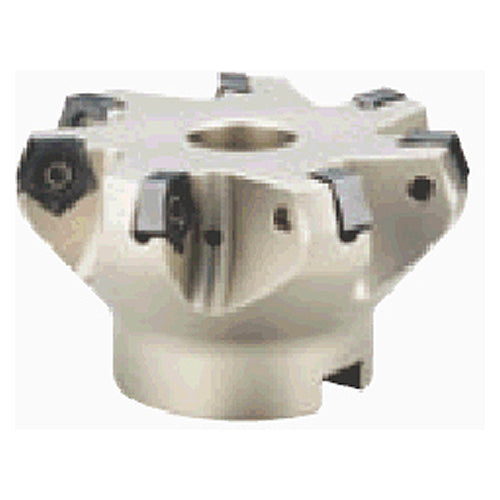

TEN09R315M47.6-14
Item #: TG256892170
Brand: Tungaloy
Model #: 6892170
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 321 mm |
| Weight of Item (WT) | 17.9 Kg |
| Cutting Diameter (DC) | 315 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 320.73 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 14 |
| Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 6.4 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm |
| Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm |
| Tool Type | 75 Facemills |
| Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
