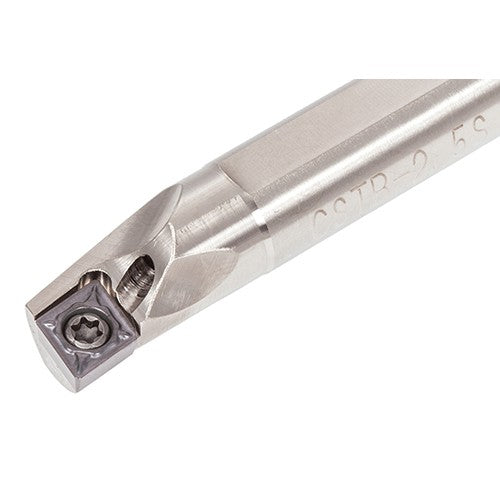

E16R-SCLCR09-D200
Item #: TG206856861
Brand: Tungaloy
Model #: 6856861
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 200 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 32 mm |
| Rake Angle Radial (GAMF) | -9 Degrees |
| Shank Height (H) | 15 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm |
| Body Material | Carbide |
| Master Insert Identification (MIID) | CCMT09T308 |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm |
