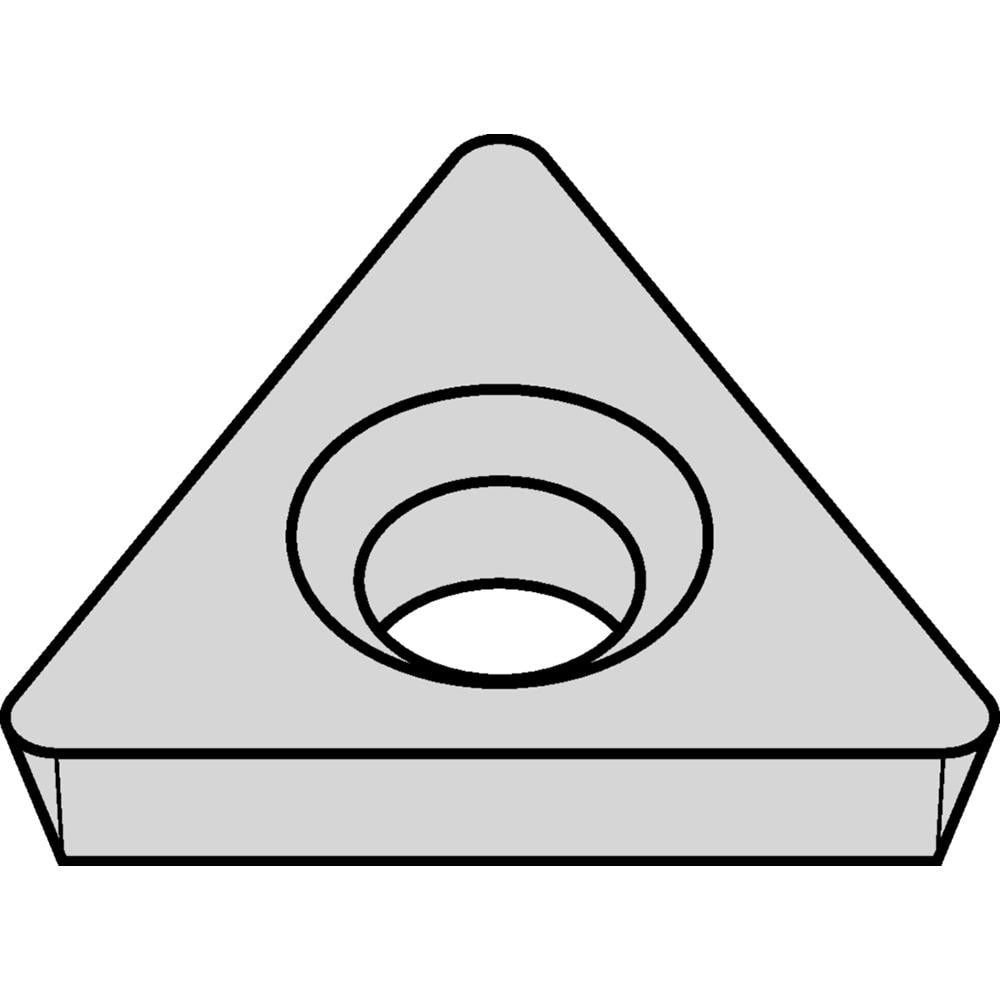

Brand: Widia / Part #: 2824266
Item #: 91918680
Brand: Widia
Model #: 2824266
Product Specifications
| Insert Style | TBHB |
| Insert Shape Code | T |
| Insert Size Code | 21.50 |
| Insert Shape | Triangle |
| Coating/Finish | TiN |
| Manufacturer Grade | CG5 |
| Corner Radius (Decimal Inch) | 0.0004 |
| Insert Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | B |
| Tolerance Code | H |
| Included Angle | 60.00 |
| Relief Angle | 15.000 |
| Series | TBHB |
| Rake | Positive |
| Ansi Code | TBHB2150 |
| Iso Code | TBHB110201 |
| Coating Classification | PVD |
| Chip Breaker | HB |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
