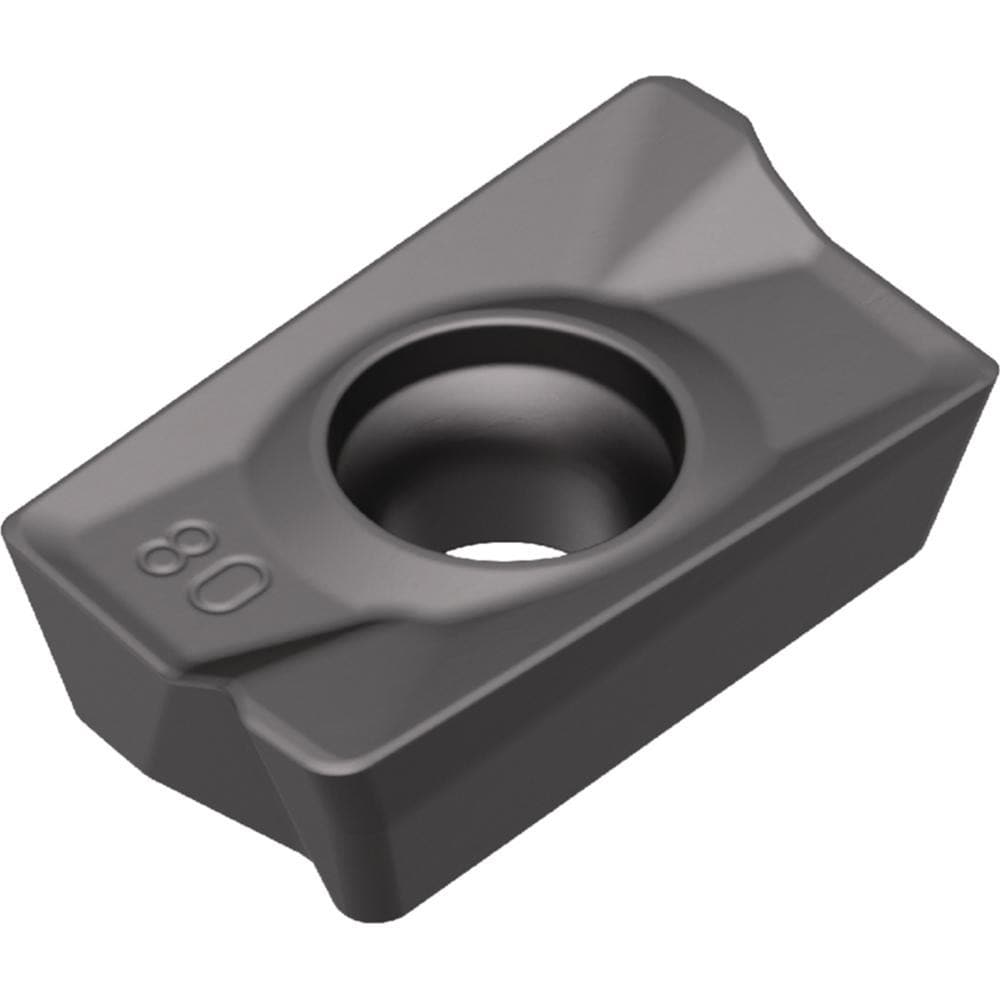

Brand: Widia / Part #: 4169133
Item #: 94003043
Brand: Widia
Model #: 4169133
Product Specifications
| Insert Style | APPT |
| Insert Size Code | 1003 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6540 |
| Thickness (Inch) | 9/64 |
| Inscribed Circle (Decimal Inch) | 0.2638 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 3.000 |
| Series | APPT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.4175 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | APPT100308SRMM |
| Iso Code | APPT100308SRMM |
| Manufacturers Catalog Number | APPT100308SRMM |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1400 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4390 |
