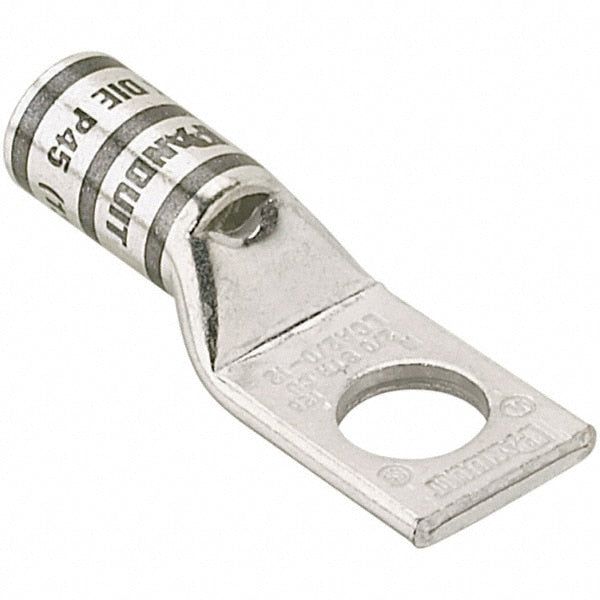

Brand: Panduit / Part #: LCA10-14-L
Item #: 46795761
Brand: Panduit
Model #: LCA10-14-L
Product Specifications
| Terminal Type | Rectangle |
| Insulation Type | Non-Insulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 10 |
| Stud Size (Inch) | 1/4 |
| Contact Material | Copper |
| Contact Plating | TiN |
| Thickness (mm) | 1.27 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0500 |
| Ring Width (mm) | 10.67 |
| Ring Width (Decimal Inch) | 0.4200 |
| Overall Length (mm) | 29.46 |
| Overall Length (Decimal Inch) | 1.1600 |
