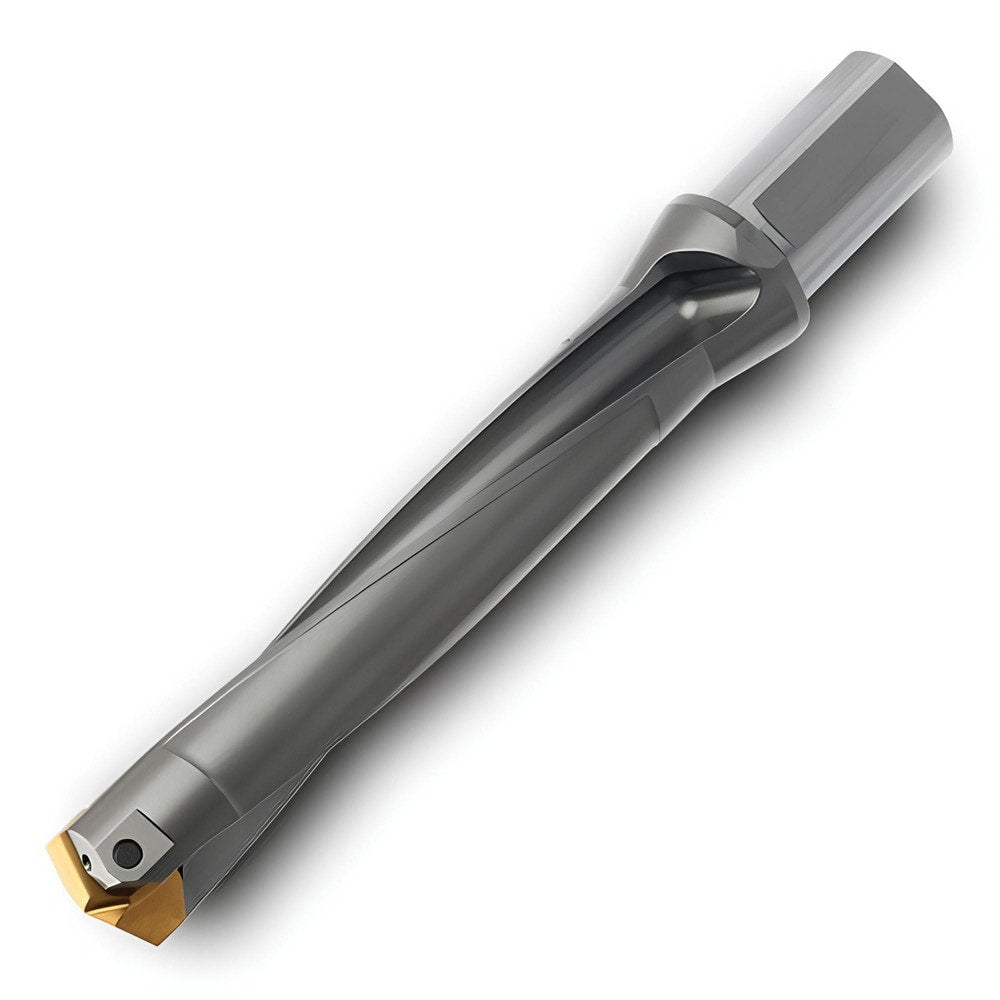

Brand: Ingersoll Cutting Tools / Part #: 6192336
Item #: 98755846
Brand: Ingersoll Cutting Tools
Model #: 6192336
Product Specifications
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 24.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 75.73 |
| Shank Type | Flatted |
| Insert Style | LPF; LPA |
| Insert Seat Size | 24 |
| Shank Diameter (mm) | 32.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPF; LPA |
| Compatible Insert Size Code | 25..; 24.. |
| Overall Length (mm) | 159.9700 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 99.97 |
| Body Length | 99.970 |
| Shank Length (mm) | 60.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
