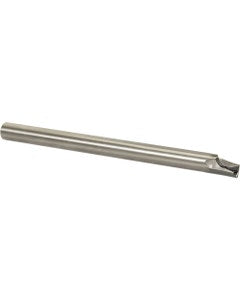

A16QSTLPL1118AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC11865
Brand: Kyocera Precision Tools
Model #: THC11865
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 180 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 180 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 30 mm |
| Rake Angle Radial (GAMF) | -3.5 Degrees |
| Shank Height (H) | 15 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 150 mm |
| Body Material | Steel |
| Functional Width (WF) | 9.2 mm |
| Style | A...STLP-AE |
| Master Insert Identification (MIID) | | TPMX22 | TPMT22 | TPGH22 | TPET22 | TPGB22 | TPMH22 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 18 mm |
| Weight of Item (WT) | 0.6277 |
