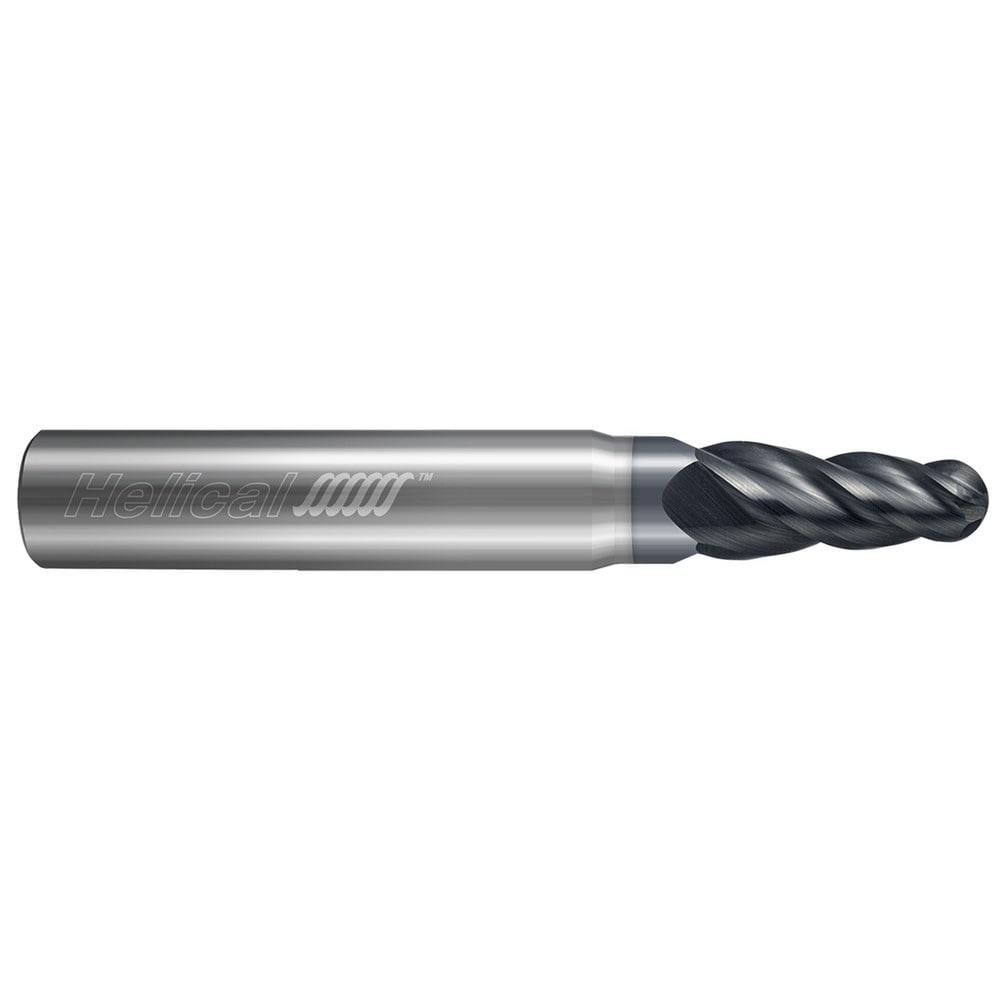

Brand: Helical Solutions / Part #: 84889
Item #: 62029830
Brand: Helical Solutions
Model #: 84889
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Length of Cut (Inch) | 5/8 |
| Taper Angle Per Side | 1.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Small End Diameter (Decimal Inch) | 0.1250 |
| Small End Diameter (Inch) | 1/8 |
| Flute Direction | Right Hand |
| Series | Specialty Profiles - Tapered End Mills - 4 Flute - Ball - Variable Pitch |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Coolant Through | No |
| Coating/Finish | Aplus |
| Number Of Flutes | 4 |
| Included Angle Degree | 2 |
