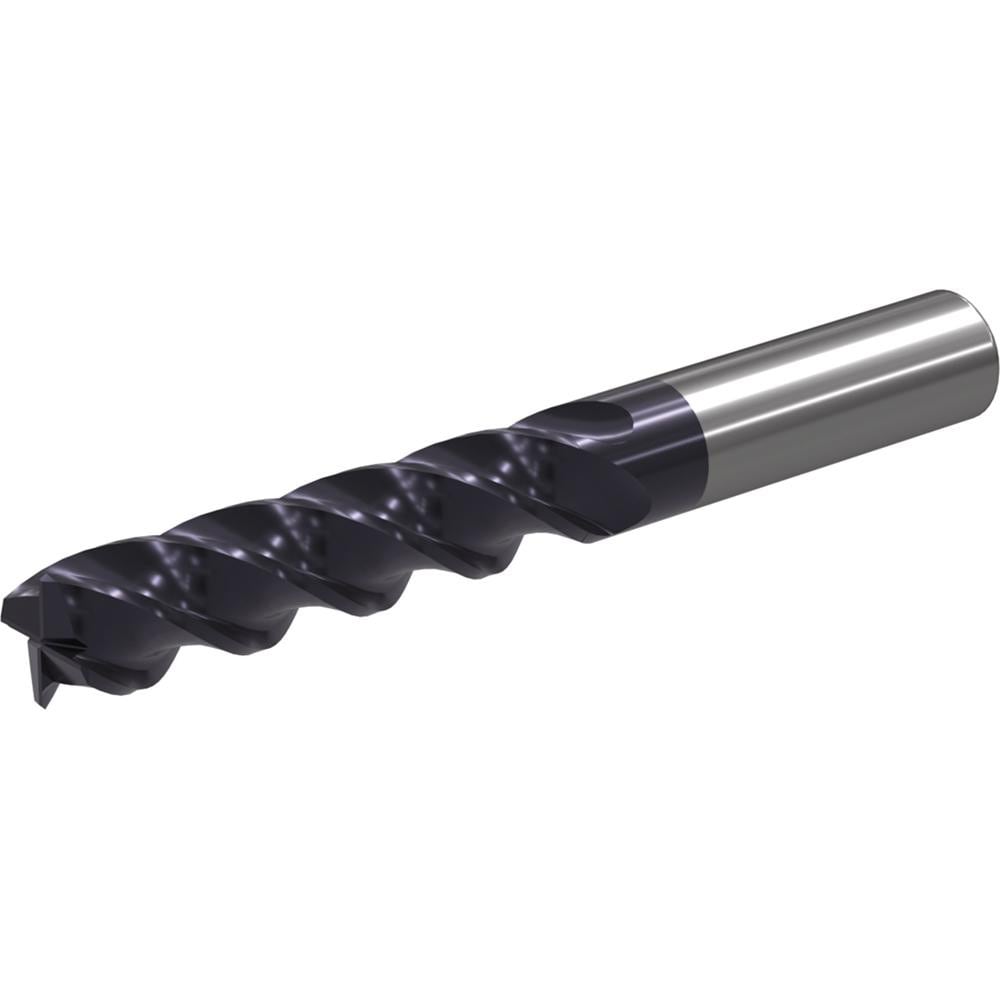

Brand: Widia / Part #: 6946013

Brand: Widia / Part #: 6946013


Item #: 33982281
Brand: Widia
Model #: 6946013

Product Specifications

Mill Diameter (mm) 6.00
Chamfer Width (mm) 0.40
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (mm) 76.00
Length of Cut (mm) 32.00
Cutting Direction Right Hand
Coolant Through No
Flute Direction Right Hand
Chipbreaker No
End Type Single
Chamfer Angle 45
Length Type Long
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.2362
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; Stainless Steel; Steel; Super Alloys & Titanium
Primary Workpiece Material Code P; S; H; M
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Material Grade WU20PE
Series W411
