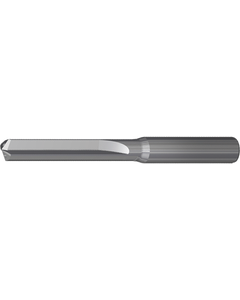

8.6 mm Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, 130°, Uncoated, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
Item #: WK534158056
Brand: Widia
Model #: 4158056
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.6 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.6 mm |
| Tool Type | Solid Carbide Drill |
| Length Group | 5xD |
| Grade | WN10HD |
| Coating | Uncoated |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 49 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 130 Degrees |
| Overall Length (OAL) | 103 mm |
| Flute Helix Angle (FHA) | CW |
| Flute Count (NOF) | 2 |
| Shank Type | Round |
