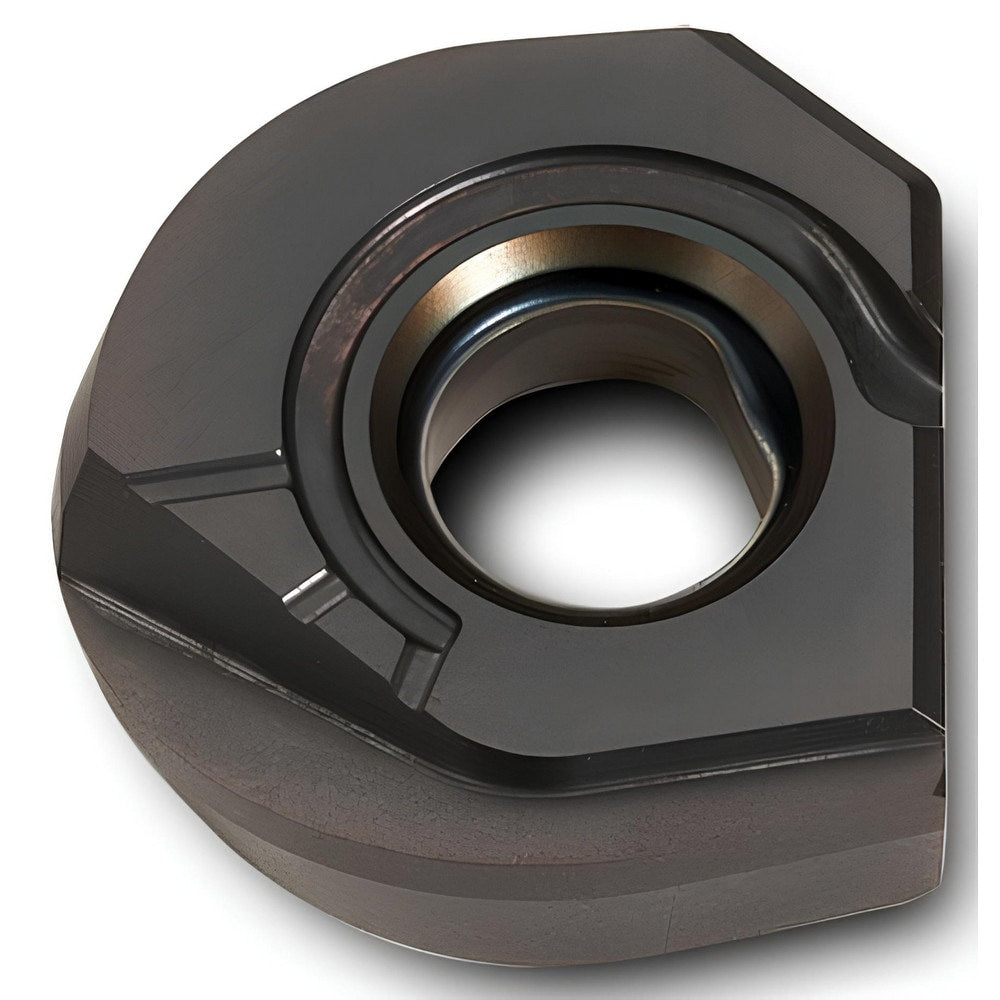

Brand: Ingersoll Cutting Tools / Part #: 5813219
Item #: 91447250
Brand: Ingersoll Cutting Tools
Model #: 5813219
Product Specifications
| Insert Style | NQHG |
| Insert Size Code | 190500 |
| Insert Material | Carbide |
| Manufacturer Grade | IN05S |
| Inscribed Circle (Inch) | 3/4 |
| Corner Radius (Inch) | 3/8 |
| Insert Hand | Right Hand |
| Series | NQHG |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.3752 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | NQHG190500R-SM |
| Manufacturers Catalog Number | NQHG190500R-SM IN05S |
| Cutter Series Compatibility | 12A5; 12A9; 12A8 |
| Chip Breaker | SM |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 9.5300 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2050 |
| Multi-Use Tool | No |
