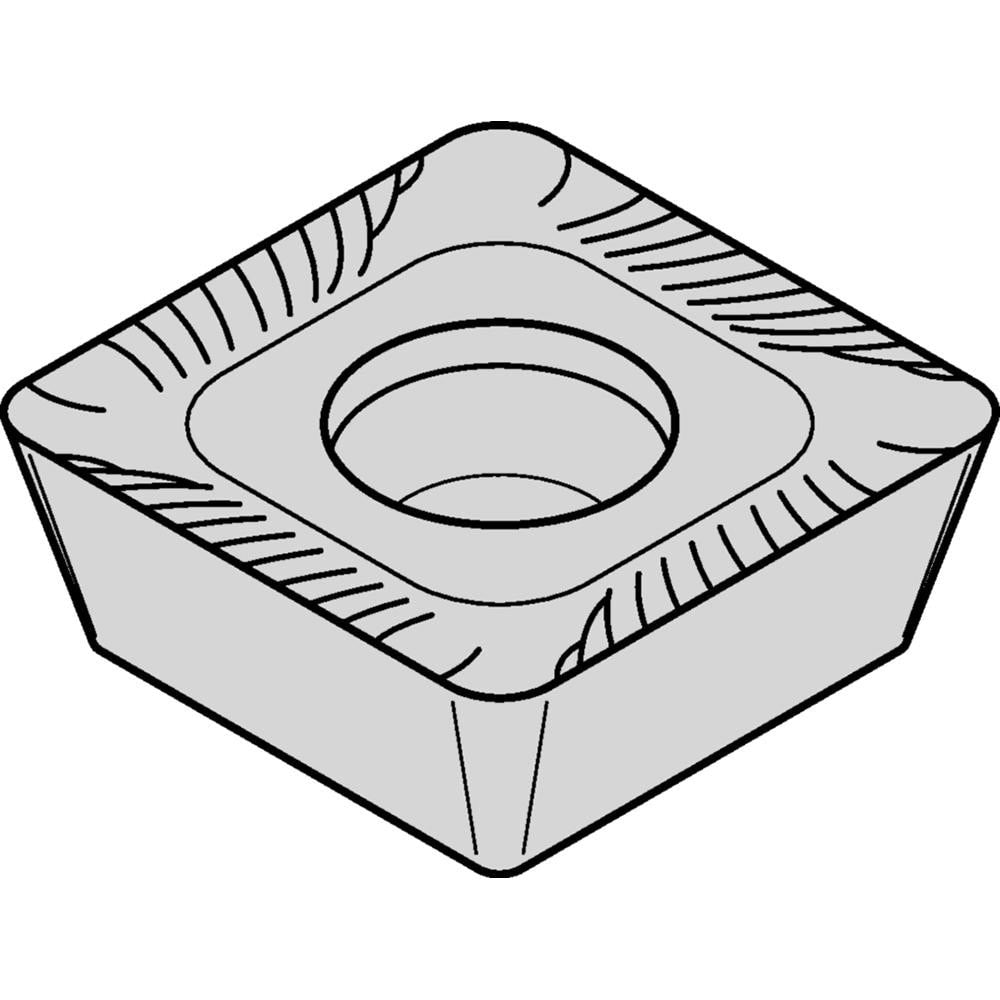

Brand: Widia / Part #: 3020185
Item #: 94487881
Brand: Widia
Model #: 3020185
Product Specifications
| Insert Style | SDMT |
| Insert Size Code | 1204 |
| Insert Size | 43 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | TN6540 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.300 |
| Series | M390 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | SDMT43PDRML |
| Iso Code | SDMT1204PDRML |
| Manufacturers Catalog Number | SDMT43PDRML |
| Cutter Series Compatibility | M690 SD1204 IN |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1878 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
