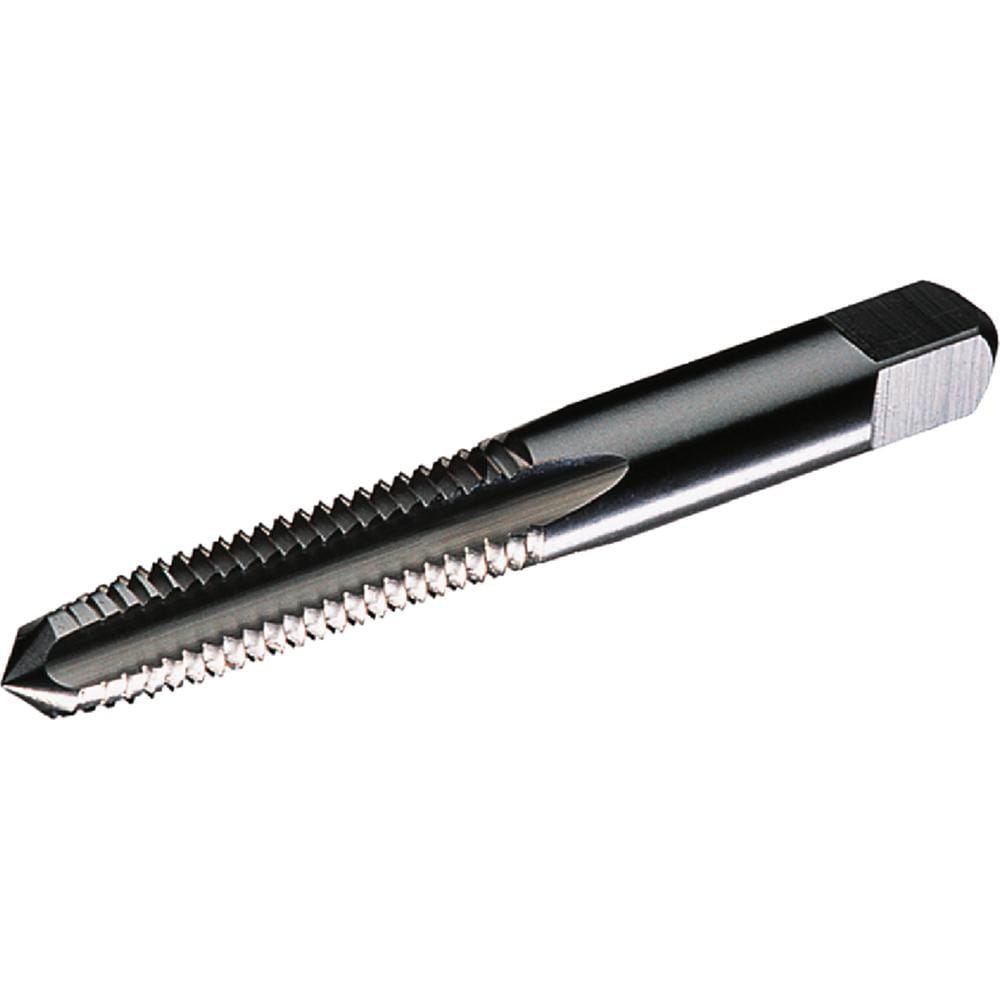

Brand: Widia / Part #: 2746494
Item #: 08732125
Brand: Widia
Model #: 2746494
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | #6-32 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Oxide |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Overall Length (Decimal Inch) | 2.0000 |
| Thread Length (Decimal Inch) | 0.6875 |
| Thread Depth (Decimal Inch) | 0.6875 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (mm) | 4.76 |
| Square Size (Decimal Inch) | 0.1100 |
| Series | 5305 |
| Shank Length (Decimal Inch) | 1.3125 |
