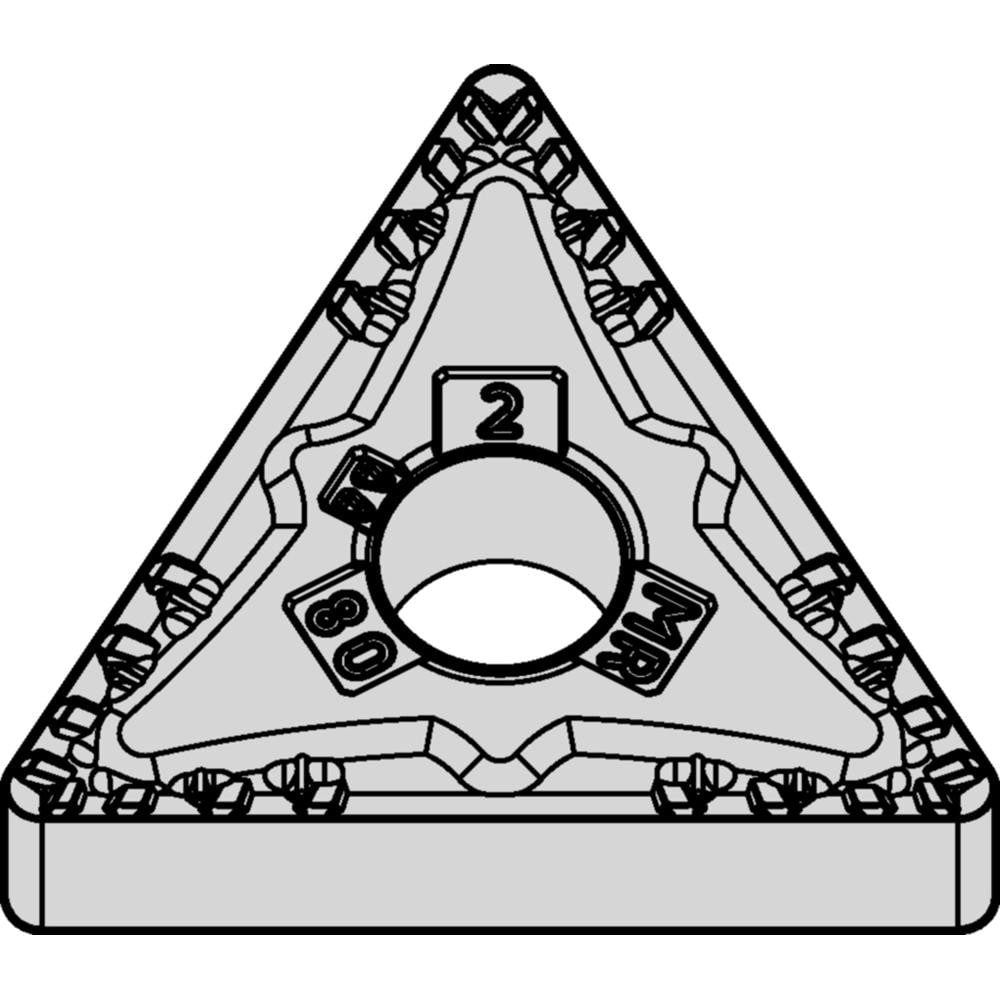

Brand: Widia / Part #: 4171151

Brand: Widia / Part #: 4171151


Item #: 95266037
Brand: Widia
Model #: 4171151

Product Specifications

Insert Style TNMG
Insert Shape Code T
Insert Size Code 332
Insert Shape Triangle
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6496
Number Of Cutting Edges 6
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code TNMG332MR
Iso Code TNMG160408MR
Manufacturers Catalog Number TNMG332MR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker MR
Style TNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$5.82
