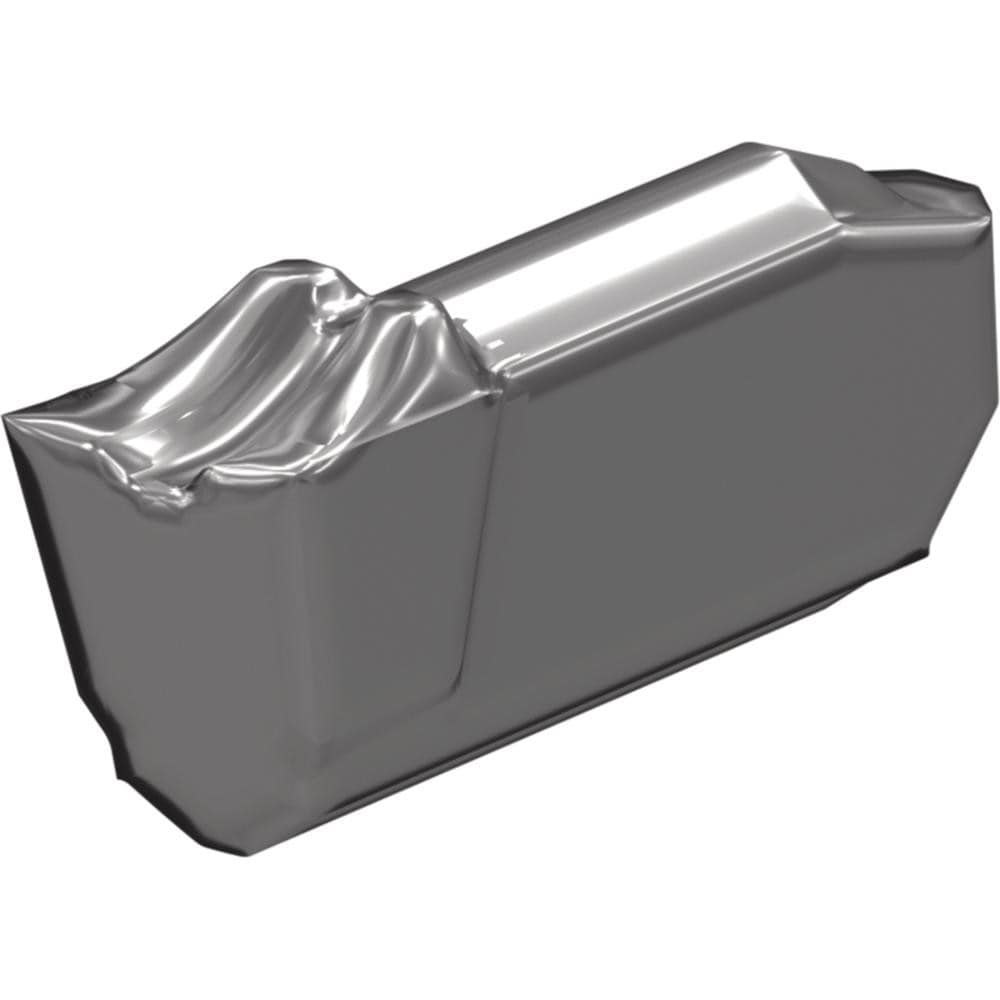

Brand: Widia / Part #: 6686398

Brand: Widia / Part #: 6686398


Item #: 93321578
Brand: Widia
Model #: 6686398

Product Specifications

Insert Style WGC
Insert Size Code 094I
Insert Material Carbide
Manufacturer Grade WU25PT
Cutting Width (Decimal Inch) 0.0940
Cutting Width (Inch) 3/32
Insert Holding Method Clamp
Lead Angle Direction Neutral
Insert Hand Neutral
Lead Angle 0.000
Relief Angle 10.500
Corner Radius (Decimal Inch) 0.0000
Chipbreaker F
Multi-use Tool No
Cutting Tool Application Cut-Off
Series WGC
Coating Process PVD
Overall Length (Decimal Inch) 0.3523
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; K; M; N
Ansi Code WC094I02PN00F00
Iso Code WC094I02PN00F00
Cutting Height (Decimal Inch) 0.1272
Manufacturers Catalog Number WC094I02PN00F00
Insert Seat Size 2
Cutting Direction Neutral
Maximum Depth of Cut (Decimal Inch) 0.3523
Coating Classification PVD
Insert Width (Decimal Inch) 0.0630
Overall Width (Decimal Inch - 4 Decimals) 0.0940
Coating/Finish AlTiN
Single Or Double End Single
$13.04
