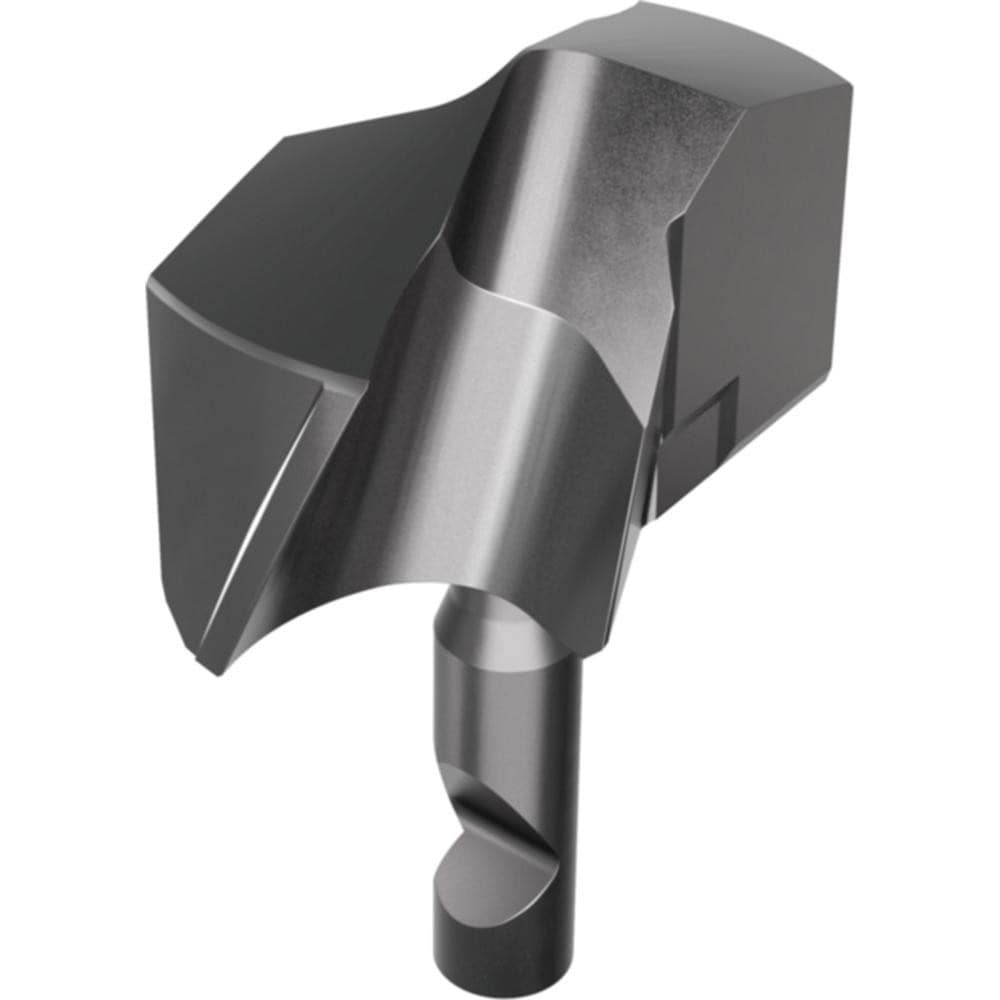

Brand: Widia / Part #: 6569002

Brand: Widia / Part #: 6569002


Item #: 02541530
Brand: Widia
Model #: 6569002

Product Specifications

Maximum Drill Diameter (mm) 25.76
Point Angle 140.00
Diameter (mm) 25.7600
Tip Material Solid Carbide
Manufacturer Grade WM15PD
Material Grade 10% Cobalt
Cutting Direction Right Hand
Series TDMX Drill
Coating Process PVD
Insert Geometry MS
Insert Seat Size J
Primary Workpiece Material Hi-Temp Alloys; Stainless Steel
Primary Workpiece Material Code S; M
Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
Secondary Workpiece Material Code K; N
Height (mm) 35.8000
Head Length (mm) 35.80
Cutting Diameter (mm) 25.76
Drill Point Angle 140
Insert Holding Method Screw
Overall Length (mm) 35.8000
ISO Number TDMX25760MSM
Coolant Through No
Overall Length/Projection (mm) 35.80
Minimum Cutting Diameter (mm) 25.76
Coating Classification PVD
Applications Drilling
Coating/Finish AlTiN
Included Angle Degree 140
Number Of Flutes 2
$144.45
