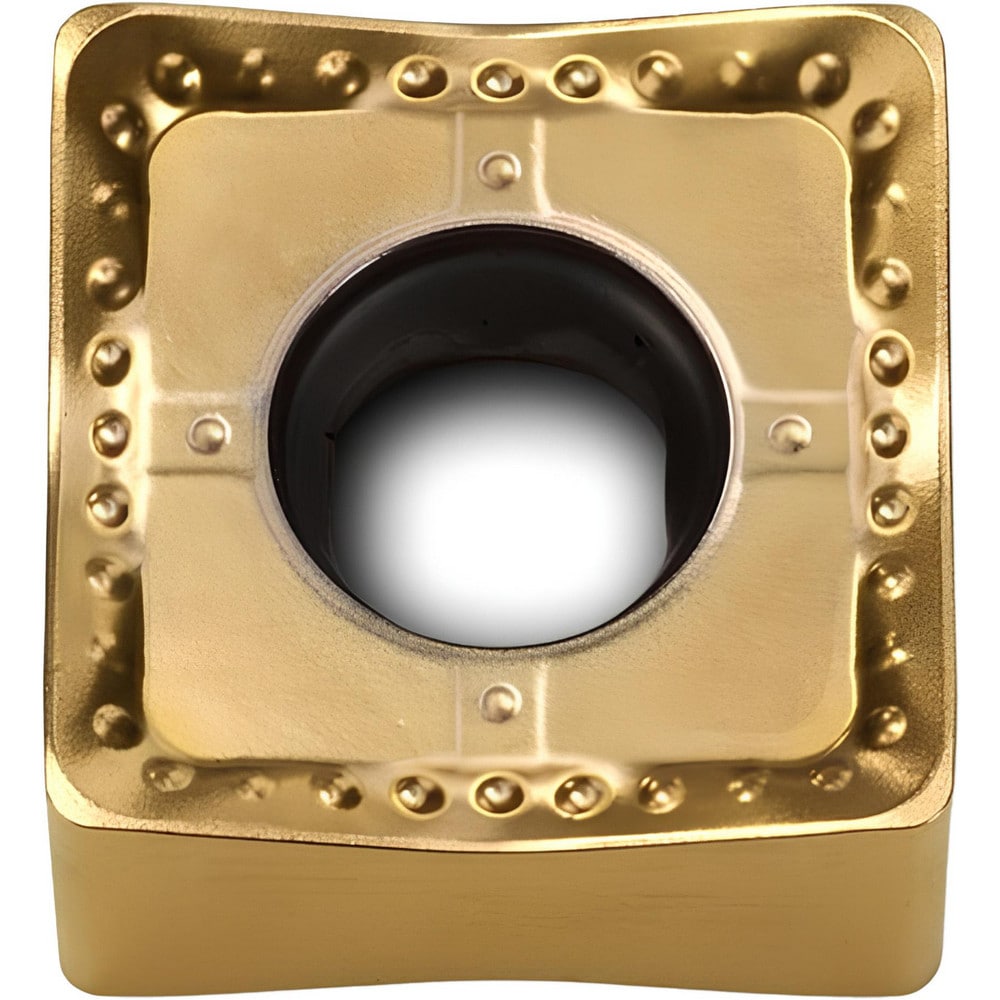

Brand: Ingersoll Cutting Tools / Part #: 5813403
Item #: 32729246
Brand: Ingersoll Cutting Tools
Model #: 5813403
Product Specifications
| Insert Style | SNGU |
| Insert Size Code | 130608 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6515 |
| Inscribed Circle (Decimal Inch) | 0.5300 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | SNGU |
| Coating Process | MTCVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4500 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNGU130608TN I |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | SNGU130608TN I IN6515 |
| Cutter Series Compatibility | DJ6T; DJ5T; DQ6T; DQ5T |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5300 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2680 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5300 |
