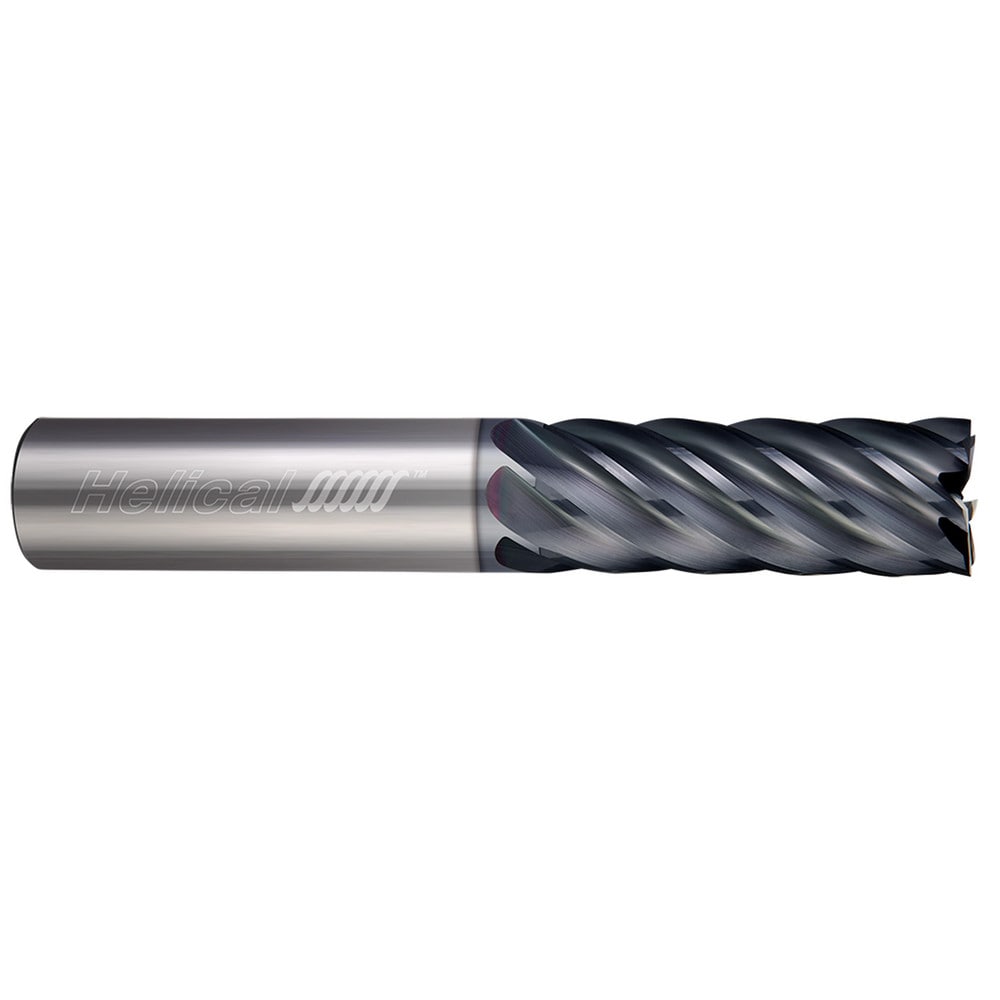

Brand: Helical Solutions / Part #: 84420
Item #: 90039975
Brand: Helical Solutions
Model #: 84420
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 9/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | APLUS |
| Overall Length (Inch) | 2-1/2 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.5625 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Series | End Mills for Steels - 7 Flute - Square - Variable Pitch |
